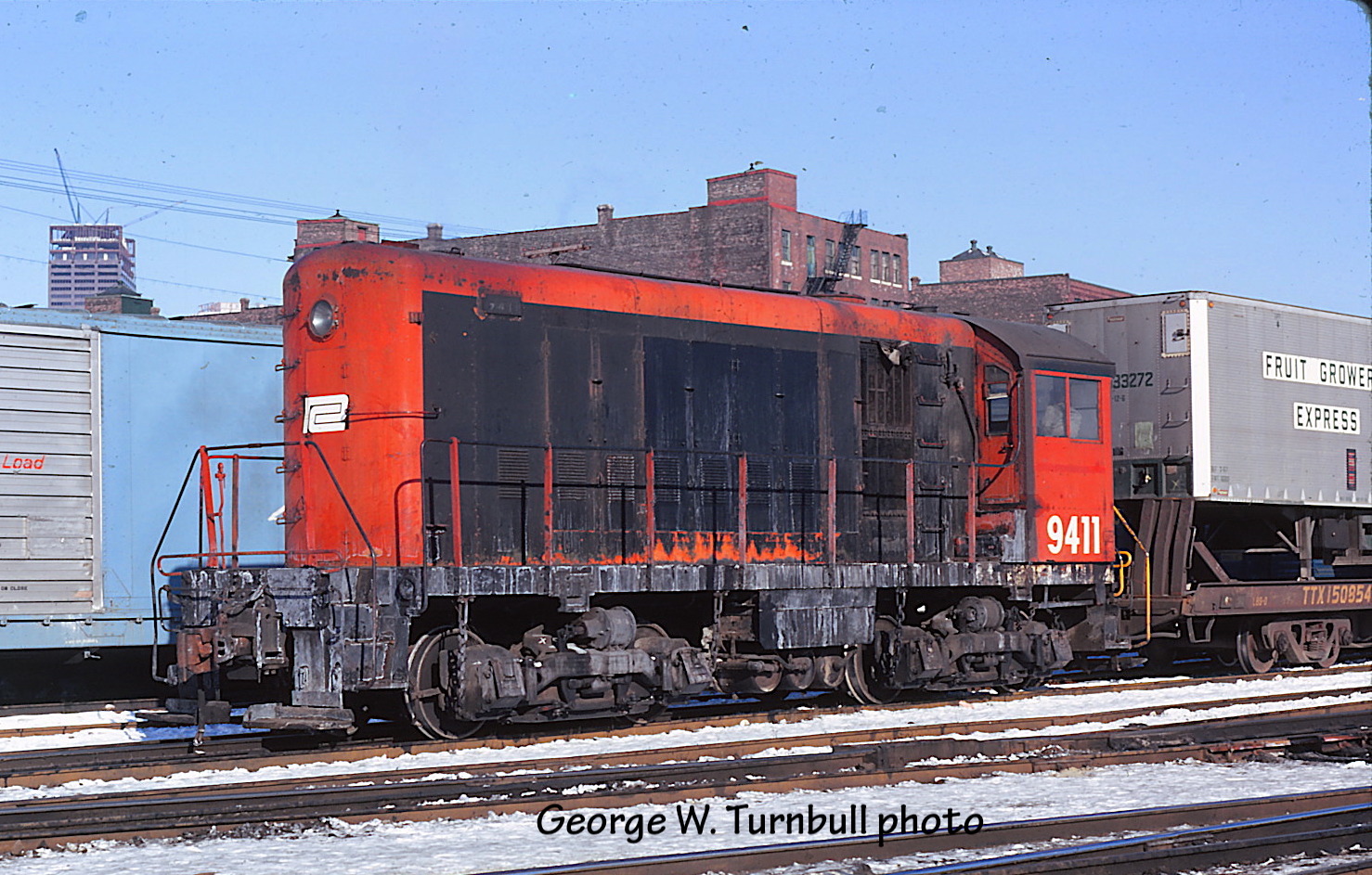

Technical Data |
|
Data Sheet Information Compiled by: JEAN-DENIS BACHAND |
-- |
New: 9 May 2005 |

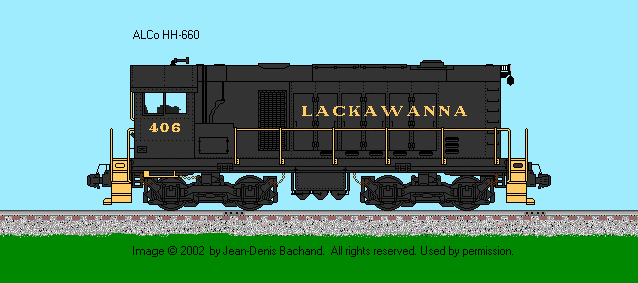

Drawing by: Jean-Denis Bachand |
- |
Engine Builder: Alco |
Engine: 4-cycle Model 538 6L |
Bore & Stroke |
12.5" X 13.0" |
RPM (Maximum / Minimum) |
740 / 315 |
Main Generator: GE - GT551A1 |
Horsepower: 660 |
Gear Ratio: 68:16 |
Speed: 60 mph |
Trucks: Blunt 4-Wheel |
Configuration: B-B |
Traction Motor Blowers: Electrical Driven (2) |
Model: ? |
Weight: 206,120 lbs |
Traction Motors: GE 287E (four) |
Tractive Effort (starting) 69,000 @ 30% |
Tractive Effort (continuous): 28,000 lbs @ 4.8 mph |
Multiple Unit Capability: No |
Dynamic Braking: - |
Auxilary Generator: -- |
Alternator: -- |
Air Brake: Westinghouse |
Model: 14EL |
Compressor: GE |
Model: CP26 |
Quantity Built: --
|
Dates: -- |
- |
- |
Exterior Dimensions
| HH-600 |
Total Length |
43'-05" |
Pilot to Pilot |
39'-05" |
Wheel Diameter |
40" |
Truck Wheel Base |
8'-00" |
Height to Top Engine Hood |
14'-05 3/4" |
Height to Top Cab Hood |
14'-05 3/4" |
Cab Width |
10'-00" |
Top Walkway Width |
9'-07 1/2" |
Walkway Width |
5'-00" |
Engine Hood Width |
9'-8" |
Center Bolster |
20'-02" |
Center Front Truck to Front Pilot |
2'-06" |
Center Rear Tucrk to Rear Pilot |
1'-09" |
Distance between Truck Centers |
28'-02" |
Minimum Turning Radius |
39 degrees |
-
| - |
Fuel Oil: 635
| Lubricating Oil: 80 |
Engine Cooling Water: 50
| Sand Capacity: 27 cu. ft. |
Options: - |
- |
- |
Reference Sources:
- Extra 2200 South Issue #35
- The Diesel Builders, Vol. 2, by John F. Kirkland
|
