MLW RSC-14 (RS-18 modified)

Somebody's Large Digital Image Here
Data Sheet Information Compiled by: Jean-Denis Bachand

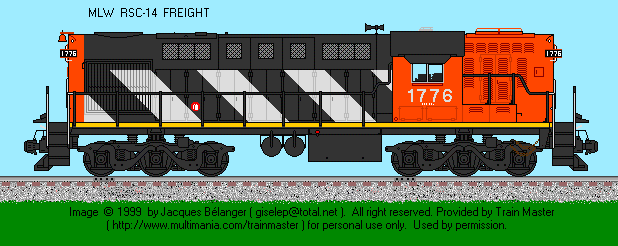

New: 26 March 2005 Drawing by: Jacques Belanger
-
Engine Builder: Dominion Engineering Works Engine: 4-cycle Model 251 V12
Bore & Stroke 9" X 10.5"
RPM (Maximum / Minimum) 1000 / 400
Main Generator: GE - 553 Horsepower: 1400
Gear Ratio: 74:18 Speed: 65 mph
Trucks: 6-Wheel Configuration: A1A-A1A
Traction Motor Blowers: Mechanical Driven (2) Model: Stuart
Weight: 229,000 lbs Traction Motors: GE 752 (four)
Tractive Effort (starting) 59,500 lbs @ 25% Tractive Effort (continuous): 47,600 lbs @ 10 mph
Multiple Unit Capability: Yes Dynamic Braking: Yes
Auxilary Generator: GE GMG535 Alternator: not applicable
Air Brake: Westinghouse Model: 26L
Compressor: Westinghouse Model: 3CDC
Boiler Type: -- PSI: --
Quantity Built: 128 Dates: 12/1954 to 2/1957
- -
Exterior Dimensions RSC-14
Total Length 56'-11"
Pilot to Pilot 47'-10"
Wheel Diameter 40"
Truck Wheel Base 11'-00"
Height to Top Engine Hood 14'-09"
Height to Top Cab Hood 15'-04"
Cab Width 10'-00"
Top Walkway Width 8'-04"
Walkway Width 5'-01"
Engine Hood Width 5'-05"
Center Bolster 31'-00"
Center Front Truck to Front Pilot 8'-03"
Center Rear Tucrk to Rear Pilot 8'-03"
Distance between Truck Centers 42'-00"
Minimum Turning Radious 21 degrees / 21 degrees
- -
Fuel Oil: 700 Lubricating Oil: 167
Engine Cooling Water: 208 Sand Capacity: 16 cu. ft.
Options:
  • Fully Automatic Transition
  • Air Signal Lines
Note:
  • Rebuilt by CN using trucks from RSC-13
Reference Sources:
  • Canadian National Mechanical Data Book. Corrections/Additions provided by: Donald J. Collins.
