Rail Power RP20BD |
 |
| Data Sheet Information Compiled by: Jean-Denis Bachand |
| New: 15 March 2008 |

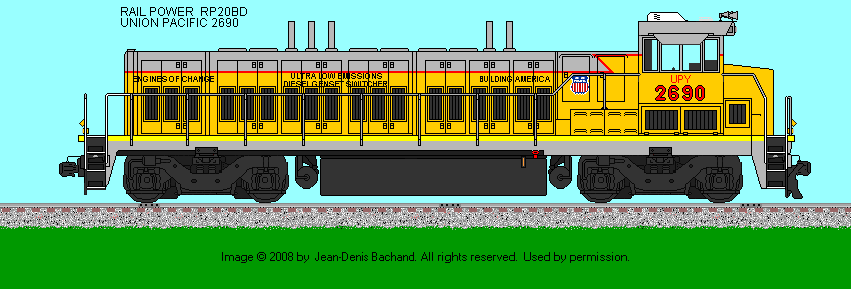

Artwork by: Jean-Denis Bachand |
| - |
| Engine Builder: Deutz |
Engine: RP500 (3) V-8 |
| Cycle: 4 |
4 EPA Tier 2 |
| RPM Max/Min: |
2100/1500 |
| Number of Engines: 3 |
Total Horsepower: 2000 |
| Main Generator: NEWAGE (3) |
Model: 752RDL |
| Gear Ratio: 62:15 |
Speed: 65 mph |
| Trucks: 4-Wheel |
Configuration: B-B |
| Traction Motor Blowers: Delco (4) |
Model: Electrical Drive |
| Weight: 275,000 lbs |
Traction Motors: 752AF (4) |
| Accumulators: # Series VRLA Batteries |
Rating: 700 VDC Nominak 1200 amp |
| Tractive Effort (starting) 88,000 lbs @ 30% |
Tractive Effort (continuous): 47.000 lbs @ 25.5mph |
| Multiple Unit Capability: No |
Dynamic Braking: No |
| Auxilary Generator: ? 200/500kW |
Alternator: N/A |
| Air Brake: Westinghouse |
Model: 26L |
| Quantity Built: 107
|
Dates: 1/2006 to Date |
| - |
- |
| Exterior Dimensions
| RP20BD |
| Total Length |
61'-02" |
| Wheel Diameter |
40" |
| Truck Wheel Base |
9'-00" |
| Height to Top Hood |
15'-02" |
| Height to Top Cab |
15'-04.5" |
| Cab Width |
10'-02.5" |
| Hood Width |
9'-11" |
| Height of Walkway |
? |
| Walkway Width |
5'-00" |
| Center Bolster |
36'-08" |
| Center Front Truck to Front Pilot |
1'-09" |
| Center Rear Truck to Rear Pilot |
1'-09" |
| Distance between Truck Centers |
45'-08" |
| Minimum Turning Radious |
30 degrees |
| -
| - |
| Fuel Oil: 3000
| Lubricating Oil: 1111 |
| Engine Cooling Water: 70.5
| Sand Capacity: 24 cu. ft. |
Options:
- Microprocessor Control System
- IGBT Power Electronics
- Individual Motor Cut-out
|
| - |
- Locomotive 2007, Trains January 2007
- Locomotive 2006, Trains January 2006
- Trains, August 2006
- Rail Power Technical Data
|
