Motive Power Industries MP1500D |
 |
| Data Sheet Information Compiled by: Jean-Denis Bachand |
| New: 26 May 2008 |

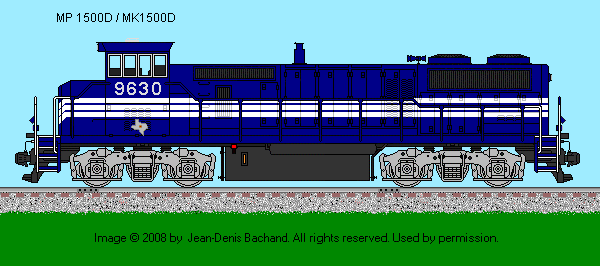

Artwork by: Jean-Denis Bachand |
| - |
| Engine Builder: Caterpillar |
Engine: 3512A (4/EPA Tier 2) |
| Bore: 170 mm (6.7") |
Stroke: 190 mm /(7.5") |
| RPM Max/Min: |
1800/450 |
| Engine Horsepower |
1400 |
| Main Generator: KATO |
Model: 8P6.5-3000 |
| Gear Ratio: 62:15 |
Speed: 70 mph |
| Trucks: 4-Wheel |
Configuration: B-B |
| Traction Motor Blowers: Delco (4) |
Model: Electrical Drive |
| Weight: 256,000 lbs |
Traction Motors: GM D78B (4) |
| Tractive Effort (starting) 85,000 lbs @ 25% |
Tractive Effort (continuous): 55,000 lbs @ 9.3mph |
| Multiple Unit Capability: Yes |
Dynamic Braking: Yes |
| Auxilary Generator: GM D-18 |
Alternator: Newage |
| Air Brake: Westinghouse |
Model: 26L |
| Quantity Built: 38
|
Dates: 8/1996 to 3/1999 (incldues both MK/MP 1500D models) |
| - |
- |
| Exterior Dimensions
| MP1500D |
| Total Length |
56'-02" |
| Wheel Diameter |
40" |
| Truck Wheel Base |
9'-00" |
| Height to Top Hood |
13'-11" |
| Height to Top Cab |
14'-06" |
| Cab Width |
10'-04" |
| Hood Width |
10'-01" |
| Height of Walkway |
8'-09.5" |
| Walkway Width |
4'-07.5" |
| Center Bolster |
31'-00" |
| Center Front Truck to Front Pilot |
2'-04.5" |
| Center Rear Truck to Rear Pilot |
2'-04.5" |
| Distance between Truck Centers |
40'-00" |
| Minimum Turning Radious |
42 degrees |
| -
| - |
| Fuel Oil: 2500 (2700)
| Lubricating Oil: 82 |
| Engine Cooling Water: 41.4
| Sand Capacity: 26 cu. ft. |
Options:
- Q-Tron QES LLL Microprocessor
|
| - |
