Motive Power Industries F40PH-3C |
 |
| Data Sheet Information Compiled by: Jean-Denis Bachand |
| New: 6 December 2008 |

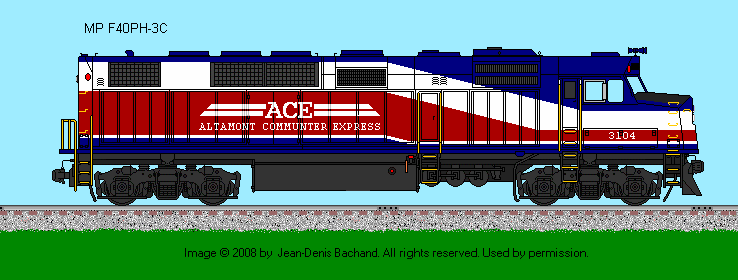

Artwork by: Jean-Denis Bachand |
| - |
| Engine Builder: EMD |
Engine: 645E |
| Cycle: 2 |
Bore & Stroke: 9.2" x 10" |
| RPM Max/Min: |
800 / 275 |
| Type: V16 |
Total Horsepower: 3200 |
| Main Generator: GM |
Model: AR10 (a |
| Gear Ratio: 57:20 |
Speed: 103 mph |
| Trucks: 4-Wheel |
Configuration: B-B |
| Traction Motor Blowers: 4 |
Model: Delco Elec. Drive |
| Weight: 277,000 lbs |
Traction Motors: GM D78B (4) |
| Tractive Effort (starting) 65,000 lbs @ 25% |
Tractive Effort (continuous): 38,240 lbs @ 16.1 mph |
| Multiple Unit Capability: Yes |
Dynamic Braking: Yes |
| Auxilary Generator: Delco A8102 |
Alternator: GM GMD14 |
| Air Compressor: Gerd. Denver |
Model: WBO |
| Air Brake: Westinghouse |
Model: 26L |
| Quantity Built: 5
|
Dates: 7/1979 to Date |
| - |
- |
| Exterior Dimensions
| F40PH-3C |
| Total Length |
64'-03" |
| Wheel Diameter |
40" |
| Truck Wheel Base |
9'-04" |
| Height to Top Hood |
15'-04.5" |
| Height to Top Cab |
15'-07.5" |
| Cab Width |
10'-04" |
| Hood Width |
10'-00" |
| Center Bolster |
41'-01" |
| Center Front Truck to Front Pilot |
3'-01" |
| Center Rear Truck to Rear Pilot |
2'-01" |
| Distance between Truck Centers |
50'-05" |
| Minimum Turning Radious |
39 degrees |
| -
| - |
| Fuel Oil: 2500 gal.
| Lubricating Oil: 243 gal. |
| Engine Cooling Water: 254 gal.
| Sand Capacity: 49 cu. ft. |
Options: -
- Micro-processor controls
- Wheel Slip Control (Boasts Adhesion)
|
| - |
- Diesel Locomotives by Greg McDonnell
|
