EMDI GPL-15T |
 |
| Data Sheet Information Compiled by: JEAN-DENIS BACHAND |
| New: 6 December 2009 |

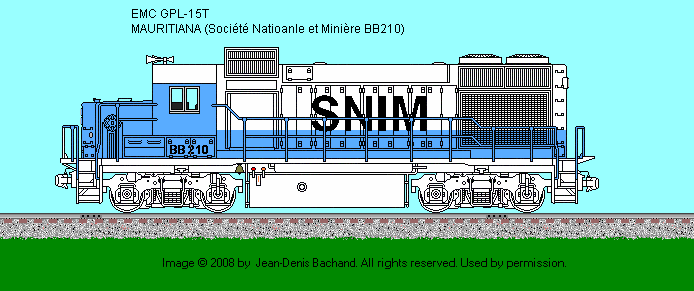

Artwork by: Jean-Denis Bachand |
| - |
| Engine Builder: EMD |
Engine: 645 12 cylinder |
| Bore & Stroke |
9.06" X 10" |
| RPM (Maximum / Minimum) |
900 / 255 |
| Main Generator: GM - D32 / AR10 |
Horsepower: 1500 |
| Gear Ratio: 62:15 |
Speed: 65 mph |
| Trucks: 4-Wheel |
Configuration: B-B |
| Traction Motor Blowers: Delco |
Model: Electric Drive (4) |
| Weight: 240,000 lbs |
Traction Motors: GM - D77 / D77B (Four) |
| Tractive Effort (starting) 61,000 lbs @25% |
Tractive Effort (continuous): 48,000 lbs @ 9.3 mph |
| Multiple Unit Capability: Yes |
Dynamic Braking: Yes |
| Auxilary Generator: Delco 64-72 |
Alternator: GM GMD14 |
| Air Brake: Westinghouse |
Model: 26L |
| Compressor: Gardner-Denver |
Model: WBO |
| Quantity Built: 26
|
Dates: 10/2009 |
| - |
- |
| Exterior Dimensions
| GPL-15T |
| Total Length |
54'-11" |
| Wheel Diameter |
40" |
| Truck Wheel Base |
9'-00" |
| Height to Top Engine Hood |
15'-02.5" |
| Height to Top Cab |
16'-02.5" |
| Cab Width |
10'-04.5" |
| Engine Hood Width |
9'-10" |
| Top of Walkway |
9'-04.5" |
| Walkway Width |
3'-08.5" |
| Center Bolster |
29'-09" |
| Center Front Truck to Front Pilot |
3'-10" |
| Center Rear Tucrk to Rear Pilot |
3'-10" |
| Distance between Truck Centers |
43'-00" |
| Minimum Turning Radious |
23 degrees |
| -
| - |
| Fuel Oil (gallons): 2400
| Lubricating Oil (gallons): 1665 |
| Engine Cooling Water (gallons): 230
| Sand Capacity (gallons): 56 cu. ft. |
| Options: - |
Reference Sources:
- Trains Magazine, May 2008
|
