EMD SD90MAC | ||
|---|---|---|
 | ||
| Data Sheet Information Compiled by: Jean-Denis Bachand | ||

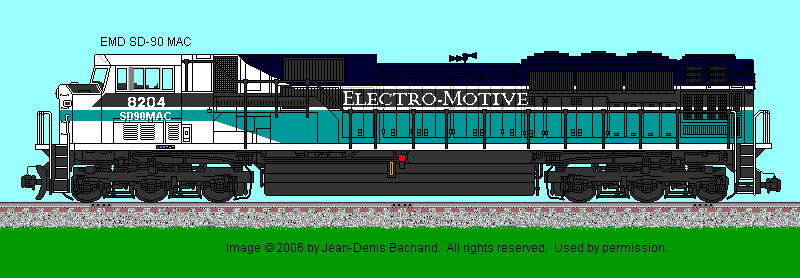

| Revised: 8 June 2007 | Artwork by: Jean-Denis Bachand | |
| - | ||
| Engine Builder: EMD | Engine: 265H 16-cylinder | |
| Bore & Stroke | 10.45" X 11.80" | |
| RPM (Maximum / Minimum) | 1000 /225 | |
| Main Generator: TA22CA8 | Horsepower: 6000 | |
| Gear Ratio: 70:17 | Speed: 70 mph | |
| Trucks: HTC-RII 6-Wheel | Configuration: C-C | |
| Traction Motor Blowers: Delco | Model: Electrical Drive (4) | |
| Weight: 415,000 lbs | Traction Motors: Six GM 1TB2630 | |
| Tractive Effort (starting) 200,000 lbs @ 32% | Tractive Effort (continuous): 137,000 lbs @ 12 mph | |
| Multiple Unit Capability: Yes | Dynamic Braking: Yes | |
| Auxilary Generator: GM A8589 | Alternator: GM CA7A | |
| Air Brake: Westinghouse | Model: 26L | |
| Wheelslip Control: GM | Model: EM2000es | |
| Compressor: Gardner-Denver | Model: WLASC | |
| Quantity Built: 410 | Dates: 10/1995 to Present | |
| - | - | |
| Exterior Dimensions | SD90MAC | |
| Total Length | 80'-02" | |
| Wheel Diameter | 42" | |
| Truck Wheel Base | 13'-07" | |
| Height to Top Engine Hood | 14'-08.5" | |
| Height to Top Cab | 15'-07.5" | |
| Cab Width | 10'-03" | |
| Top of Walkway | 9'-04.5" | |
| Walkway Width | 3'-08.5" | |
| Engine Hood Width | 10'-00" | |
| Center Bolster | 54'-06" | |
| Center Front Truck to Front Pilot | 2'-03" | |
| Center Rear Truck to Rear Pilot | 2'-03" | |
| Distance between Truck Centers | 68'-00" | |
| Minimum Turning Radious | 29 degrees | |
| - | - | |
| Fuel Oil: 5000 | Lubricating Oil: 450 | |
| Engine Cooling Water: 390 | Sand Capacity: 40 cu. ft. | |
| Options: | ||
| - | ||
Reference Sources:
Thank you to the following individual(s) for corrections: Fr. Bernard Carman. | ||
