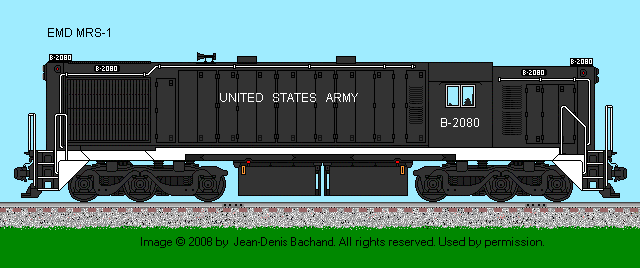

EMD MRS-1 |
 |
| Data Sheet Information Compiled by: Jean-Denis Bachand |
| New: 15 February 2008 |
Artwork by: Jean-Denis Bachand |
| - |
| Engine Builder: EMD |
Engine: 567B 16 cylinder |
| Bore & Stroke |
8" X 10" |
| RPM (Maximum / Minimum) |
835 /275 |
| Main Generator: GM D22 |
Horsepower: 1600 |
| Gear Ratio: 60:17 |
Speed: 83 mph |
| Trucks: 6-Wheel |
Configuration: C-C |
| Traction Motor Blowers: Delco (4) |
Model: Belt Drive |
| Weight: 380,000 lbs |
Traction Motors: Six GM D27 |
| Tractive Effort (starting) 90,800 lbs @ 25% |
Tractive Effort (continuous): 95,000 lbs @ 9.3 mph |
| Multiple Unit Capability: Yes |
Dynamic Braking: Yes |
| Auxilary Generator: GM A8102 |
Alternator: GM D14 |
| Air Brake: Westinghouse |
Model: 24RL |
| Compressor: Gardner-Denver |
Model: WBO |
| Quantity Built: 13
|
Dates: 1952 |
| - |
- |
| Exterior Dimensions
| MRS-1 |
| Total Length |
67'-00" |
| Wheel Diameter |
40" |
| Truck Wheel Base |
15'-01" |
| Height to Top Engine Hood |
14'-00" |
| Height to Top Cab |
14'-06" |
| Cab Width |
10'-03" |
| Top of Walkway |
8'-06.5" |
| Walkway Width |
5'-04.5" |
| Engine Hood Width |
9'-10" |
| Center Bolster |
30'-00" |
| Center Front Truck to Front Pilot |
3'-09" |
| Center Rear Truck to Rear Pilot |
3'-09" |
| Distance between Truck Centers |
45'-01" |
| Minimum Turning Radious |
30 degrees |
| -
| - |
| Fuel Oil: 1200
| Lubricating Oil: 200 |
| Engine Cooling Water: 230
| Sand Capacity: 50 cu. ft. |
| Boiler: OK4625 @ 2750 lbs./hour |
| - |
