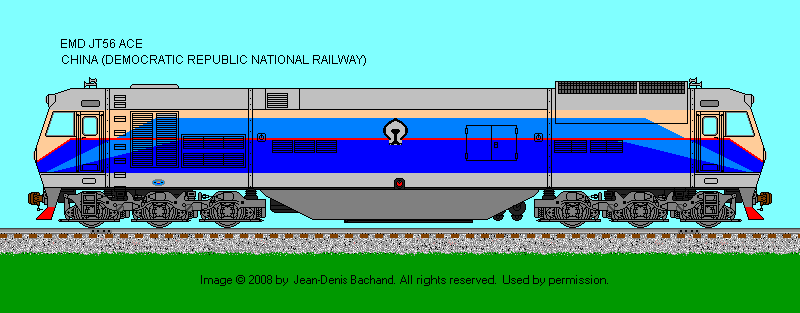

EMDI JT56ACe |
 |
| Data Sheet Information Compiled by: Jean-Denis Bachand |
| Revised: 13 May 2010 |
Artwork by: Jean-Denis Bachand |
| New: 30 January 2008 |
- |
| Engine Builder: EMDI |
Engine: GM265H 16 cylinder |
| Bore & Stroke |
10.44" X 11.81" |
| RPM (Maximum / Minimum) |
950 /290 |
| Main Generator: GM TA22CA8 |
Horsepower: 6000 |
| Gear Ratio: 70:17 |
Speed: 70 mph |
| Trucks: HTC-II 6-Wheel |
Configuration: C-C |
| Traction Motor Blowers: Delco (4) |
Model: Electrical Drive |
| Weight: 330,000 lbs |
Traction Motors: Six GM GM 1TB2630 |
| Tractive Effort (starting) 139,500 lbs @ 33% |
Tractive Effort (continuous): 130,050 lbs @ 12 mph |
| Multiple Unit Capability: Yes |
Dynamic Braking: Yes |
| Auxilary Generator: GM A8589 |
Alternator: GM CA7A |
| Air Brake: Westinghouse |
Model: 26L |
| Compressor: Gardner-Denver |
Model: WLASC |
| Quantity Built: 300
|
Dates: 6/2007 to date |
| - |
- |
| Exterior Dimensions
| SD70ACe |
| Total Length |
80'-02" |
| Wheel Diameter |
42" |
| Truck Wheel Base |
13'-07.5" |
| Height to Top Engine Hood |
14'-08.5" |
| Height to Top Cab |
15'-07.5" |
| Cab Width |
10'-03" |
| Top of Walkway |
9'-04.5" |
| Walkway Width |
3'-08.5" |
| Engine Hood Width |
10'-00" |
| Center Bolster |
54'-06" |
| Center Front Truck to Front Pilot |
2'-03" |
| Center Rear Truck to Rear Pilot |
2'-03" |
| Distance between Truck Centers |
68'-00.5" |
| Minimum Turning Radious |
29 degrees |
| -
| - |
| Fuel Oil: 5000
| Lubricating Oil: 450 |
| Engine Cooling Water: 390
| Sand Capacity: 40 cu. ft. |
| Options: Isolated Cab |
| - |
Reference Sources:
- Diesel Locomotives, Vol. 2, by Bob Hayden
- Illustrated Treasury of GM Locomotives by James W. Kerr
- Diesel Locomotives, The First 50 Years, by Louis A. Marre
- Diesel Locomotives by Greg McDonnell
|
