EMD GP18 and GP9B |
 |
| Data Sheet Information Compiled by: JEAN-DENIS BACHAND |
| New: 6 May 2006 |

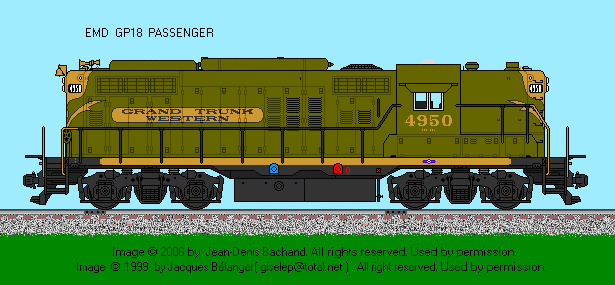

Artwork by: Jean-Denis Bachand |
| - |
| Engine Builder: EMD |
Engine: 567D1 16 cylinder |
| Bore & Stroke |
8.5" X 10" |
| RPM (Maximum / Minimum) |
800 / 275 |
| Main Generator: GM - D22 |
Horsepower: 1500 |
| Gear Ratio: 62:15 |
Speed: 65 mph |
| Trucks: 4-Wheel |
Configuration: B-B |
| Weight: 240,000 lbs |
Traction Motors: GM - D47 (Four) |
| Tractive Effort (starting) 65,000 lbs @25% |
Tractive Effort (continuous): 45,000 lbs @ 12 mph |
| Multiple Unit Capability: Yes |
Dynamic Braking: Yes |
| Auxilary Generator: Delco 64-72 |
Alternator: GM D14 |
| Air Brake: Westinghouse |
Model: 24L |
| Quantity Built: 388 |
Dates: 12/59 to 1163 |
| - |
- |
| Exterior Dimensions
| GP18 |
| Distance between coupler pulling faces |
56'-02" |
| Wheel Diameter |
40" |
| Truck Wheel Base |
9'-00" |
| Height to Top Engine Hood |
13'-11" |
| Height to Top Cab |
14'-06" |
| Cab Width |
10'-03" |
| Engine Hood Width |
10'-00" |
| Distance between bolster centers |
32'-00" |
| Minimum Turning Radious |
39 degrees |
| -
| - |
| Fuel Oil: 1700
| Lubricating Oil: 227 |
| Engine Cooling Water: 220
| Sand Capacity: 18 cu. ft. |
| Options: Vapor Clarkson Boiler #4625 |
| - |
 |

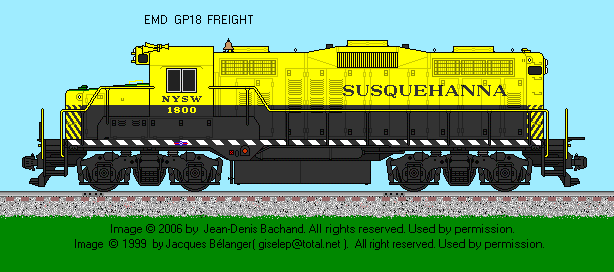

| Artwork by: Jean-Denis Bachand |
| - |
Reference Sources:
- Diesel Locomtoives, Vol.2, by Bob Hayden
- Illustrated Treasury of GM Locomotives, by James W. Kerr
- Diesel Locomotives, The First 50 Years by Louis A. Marre
- The Second Diesel Spotter's Guide, by Jerry A. Pinkepank
- "Early Diesel and Electric Locomotives," Rail Heritage Publications
- Diesel & Electric Locomotive Specificiations, 1981 by F.K. Hudson
- Train Shed Cyclopedia, Vol. 20, 58, 60, 64, 80
|
