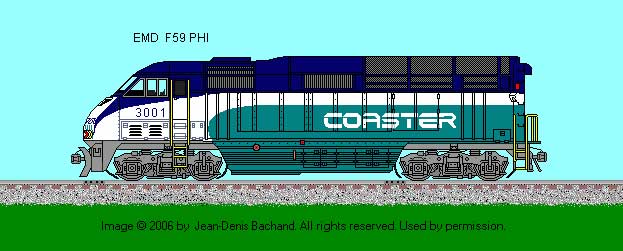

EMD F59PHI |
 |
| Data Sheet Information Compiled by: JEAN-DENIS BACHAND |
| New: 5 April 2008 |
Artwork by: Jean-Denis Bachand |
| - |
| Engine Builder: EMD |
Engine: 710G3B 12-cylinder |
| Bore & Stroke |
9.02" X 11" |
| RPM (Maximum / Minimum) |
904 / 318 |
| Main Generator: GM - AR15 |
Horsepower: 3000 |
| Gear Ratio: 56:21 |
Speed: 108 mph |
| Trucks: HT-B 4-Wheel |
Configuration: B-B |
| Traction Motor Blowers: Electrical Drive (4) |
Model: Delco |
| Weight: 265,000 lbs |
Traction Motors: Four GM - D87BTR |
| Tractive Effort (starting) 65,000 lbs @25% |
Tractive Effort (continuous): 38,240 lbs @ 16.1 mph |
| Multiple Unit Capability: Yes |
Dynamic Braking: Yes |
| Auxilary Generator: Delco A8102 |
Alternator: GM CA6 |
| Air Brake: Westinghouse |
Model: 26L |
| Compressor: Gardner-Denver |
Model: WLN |
| Quantity Built: 74
|
Dates: 8/1994 to 2003 |
| - |
- |
| Exterior Dimensions
| F59PHI |
| Total Length |
58'-02" |
| Wheel Diameter |
40" |
| Truck Wheel Base |
9'-00" |
| Height to Top Engine Hood |
15'-04.5" |
| Height to Top Cab |
15'-07.5" |
| Cab Width |
10'-03" |
| Engine Hood Width |
10'-07" |
| Center Bolster |
35'-07" |
| Center Front Truck to Front Pilot |
2'-01" |
| Center Rear Truck to Rear Pilot |
2'-01" |
| Distance between Truck Centers |
44'-07" |
| Minimum Turning Radious |
45 degrees |
| -
| - |
| Fuel Oil: 1500
| Lubricating Oil: 243 |
| Engine Cooling Water: 254
| Sand Capacity: 49 cu. ft. |
| Options: |
| - |
