EMD F5A and F5B

Drawing of GTW F5A #9027 in black, white, red livery
Data Sheet Information Compiled by: JEAN-DENIS BACHAND
Rev. 14 Feb. 2023 / New: 4 July 2006  Artwork by: Jean-Denis Bachand
-
Engine Builder: Winton Engine: 567B 16 cylinder
Bore & Stroke 8" X 10"
RPM (Maximum / Minimum) 800 / 275
Main Generator: GM - D12B Horsepower: 1500
Gear Ratio: 62:15 Speed: 65 mph
Trucks: 4-Wheel Configuration: B-B
Traction Motor Blowers: Electrical Drive (4) Model: GM
Weight: 230,000 lbs (and 228,000 for F5B) Traction Motors: GM - D27C (four)
Tractive Effort (starting) 55,000 lbs @25% Tractive Effort (continuous): 40,000 lbs @ 9.3 mph
Multiple Unit Capability: Yes Dynamic Braking: Yes
Auxilary Generator: Delco A8102 Alternator: D14
Air Brake: Westinghouse Model: 24RL
Compressor: Gardner Denver Model: WBO
Quantity Built: **** Dates: 8/1948 to 2/1949
- -
Exterior Dimensions F5A (and F5B)
Total Length 50'-08" (and 50'-00" for F3B)
Wheel Diameter 40"
Truck Wheel Base 9'-00"
Total Wheel Base 39'-00"
Height to Top Engine Hood 14'-01.5"
Height to Top Cab 15'-00" (N/A for F3B)
Cab Width 10'-07" (N/A for F5B)
Engine Hood Width 9'-10"
Center Front Truck to Front Pilot 9'-11" (and 5'-6" for F3B both ends)
Center Rear Truck to Rear Pilot 8'-6"
Distance between Truck Centers 30'-00"
Minimum Turning Radious 30 degrees
- -
Fuel Oil: 1200 Lubricating Oil: 200
Engine Cooling Water: 230 Sand Capacity: 16 cu. ft.
Options: Vapor Clarkson Boiler (Model OK4616): 1200 lbs/hr (and Model OK4625: 1800/lbs/hr for F5B)
-

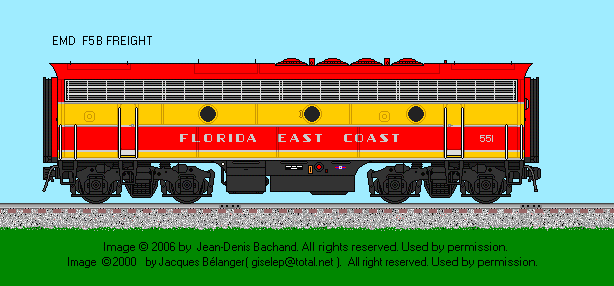

Drawing of FEC F5B #551 in reddish-orange and yellow livery.
- Artwork by: Jean-Denis Bachand
-

Note: *** "F5A" was not an official EMD designation; thus quantity built is uncertain. An upgraded traction motor used in this model.

Reference Sources:

  • Diesel Locomtoives, Vol.2, by Bob Hayden
  • Illustrated Treasury of GM Locomotives, by James W. Kerr
  • Diesel Locomotives, The First 50 Years by Louis A. Marre
  • The Second Diesel Spotter's Guide, by Jerry A. Pinkepank
  • "Early Diesel and Electric Locomotives," Rail Heritage Publications
  • Diesel & Electric Locomotive Specificiations, 1981 by F.K. Hudson
  • Train Shed Cyclopedia, Vol. 20, 58, 60, 64, 80
