EMD E6A and E6B

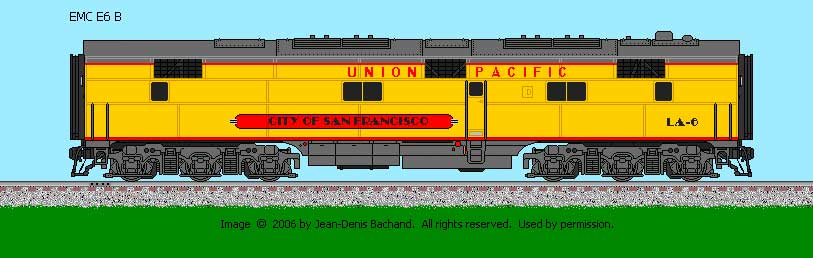

Somebody's Large Digital Image Here
Data Sheet Information Compiled by: JEAN-DENIS BACHAND
New: 4 August 2006  Artwork by: Jean-Denis Bachand
-
Engine Builder: Winton Engines: Two 567 12 cylinder
Bore & Stroke 8.5" X 10"
RPM (Maximum / Minimum) 800 / 275
Main Generator: GM - D4 (Two) Horsepower: 2000
Gear Ratio: 52:15 Speed: 116 mph
Trucks: 6-Wheel Configuration: A1A-A1A
Traction Motor Blowers: Mechanical Drive (2) Model: GM
Weight: 315,000 lbs (290,000 lbs for B-unit) Traction Motors: Four GM - D7
Tractive Effort (starting) 56,500 lbs @25% Tractive Effort (continuous): 31,000 lbs @ 11 mph
Multiple Unit Capability: Yes Dynamic Braking: Yes (and No for B-unit)
Boiler: Vapor-Clarkson Capacity: 1200 lbs./hr.
Auxilary Generator: Delco -
Air Brake: Westinghouse Model: 24RL
Compressor: Gardner-Denver Model: WXO
Quantity Built: 92 A-units and 26 B-units Dates: 11/39 to 9/42 (and 4/40 to 2/42 for B-units)
- -
Exterior Dimensions E6 (and E6B)
Total Length 71'-01.5"
Wheel Diameter 36"
Truck Wheel Base 14'-01"
Height to Top Engine Hood 13'-11"
Height to Top Cab 15'-00"
Cab Width 10'-03"
Engine Hood Width 9'-03"
Center Bolster 43'-00"
Center Front Truck to Front Pilot 6'-01.5" (and 5'-01.5 for b-units)
Center Rear Truck to Rear Pilot 5'-01.5"
Distance between Truck Centers 57'-01"
Minimum Turning Radious 57 degrees
- -
Fuel Oil: 1200 Lubricating Oil: 330
Engine Cooling Water: 400 Sand Capacity: 16 cu. ft.
-

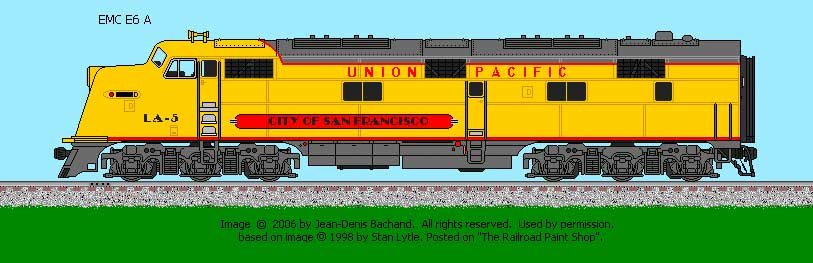

Somebody's Large Digital Image Here
