BLW VO-660 |
 |
| Data Sheet Information Compiled by: JEAN-DENIS BACHAND |
| New: 18 February 2006 |

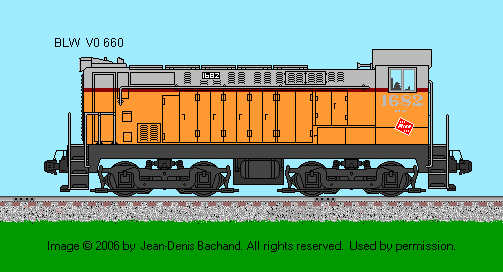

Drawing by: Jean-Denis Bachand |
| - |
| Engine Builder: De Lavergne |
Engine: 4-cycle Model VO 6c Super |
| Bore & Stroke |
12.5" X 15.5" |
| RPM (Maximum) |
625 |
| Main Generator: Westinghouse - WE480 |
Horsepower: 660 |
| Gear Ratio: 68:18 |
Speed: 45 mph |
| Trucks: 4-Wheel |
Configuration: B-B |
| Traction Motor Blowers: Belt Drive (1) |
Model: ? |
| Weight: 204,500 lbs |
Traction Motors: Westinghouse - WE362 (four) |
| Tractive Effort (starting) 49,625 lbs @ 25% |
Tractive Effort (continuous): 34,000 lbs @ 6.8 mph |
| Multiple Unit Capability: No |
Dynamic Braking: No |
| Auxilary Generator: -- |
Alternator: -- |
| Air Brake: Westinghouse |
Model: 6SL |
| Compressor: Westinghouse |
Model: 3C2C |
| Quantity Built: 548
|
Dates: 2/1939 to 3/1946 |
| - |
- |
| Exterior Dimensions
| VO-660 |
| Total Length |
46'-00" |
| Wheel Diameter |
40" |
| Truck Wheel Base |
8'-00" |
| Height to Top Engine Hood |
12'-03.2" |
| Height to Top Cab Hood |
14'-03" |
| Cab Width |
9'-10" (10'-02" over hand rails) |
| Center Front Truck to Front Pilot |
11'-08" |
| Center Rear Tucrk to Rear Pilot |
11'-08" |
| Distance between Truck Centers |
22'-08" |
| Minimum Turning Radious |
30 degrees |
| -
| - |
| Fuel Oil: 60
| Lubricating Oil: 95 |
| Engine Cooling Water: 240
| Sand Capacity: 30 cu. ft. |
Reference Sources:
- Diesel Locomtoives, Vol.2, by Bob Hayden
- Baldwin Diesel Locomotives by Stephen F. & Gary W. Dolzall
- Illustrated Treasury of Baldwin Locomotives by James W. Kerr
- Diesel Locomotives, The First 50 Years by Louis A. Mare
- "Early Diesel and Electric Locomotives," Rail Heritage Publications
- Diesel & Electric Locomotive Specificiations, 1981 by F.K. Hudson
- Train Shed Cyclopedia, Vol. 20, 58, 60, 64, 80
- Railroad Model Craftsman, November 1969
- Railroad Modeler, March 1975
|
