Alco RSC-2 |
 |
| Data Sheet Information Compiled by: Jean-Denis Bachand |
| Updated: 20 May 2005 |

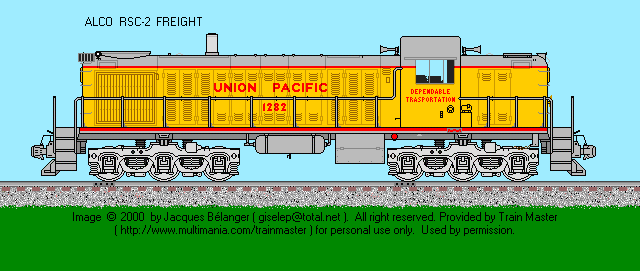

Drawing by: Jacques Belanger |
| - |
| Engine Builder: Alco |
Engine: 4-cycle Model 244 V12 |
| Bore & Stroke |
9" X 10.5" |
| RPM (Maximum / Minimum) |
1025 / 350 |
| Main Generator: GE - GT564A/C |
Horsepower: 1500 |
| Gear Ratio: 74:18 |
Speed: 65 mph |
| Trucks: 6-Wheel |
Configuration: C-C |
| Traction Motor Blowers: Mechanical Driven (2) |
Model: ? |
| Weight: 235,000 lbs |
Traction Motors: GE 752 (four) |
| Tractive Effort (starting) 64,100 lbs @ 25% |
Tractive Effort (continuous): 42,500 lbs @ 11 mph |
| Multiple Unit Capability: Yes |
Dynamic Braking: Yes |
| Auxilary Generator: GE GMG139 |
Alternator: not applicable |
| Air Brake: Westinghouse |
Model: 24L |
| Compressor: Westinghouse |
Model: 3CDC |
| Boiler Type: Steam |
Lbs/hr: 1600 |
| Quantity Built: 70
|
Dates: 10/1946 to 4/1950 |
| - |
- |
| Exterior Dimensions
| RSC-2 |
| Total Length |
55'-11" |
| Pilot to Pilot |
49'-11" |
| Wheel Diameter |
40" |
| Truck Wheel Base |
10'-06" |
| Height to Top Engine Hood |
12'-02" |
| Height to Top Cab Hood |
14'-05" |
| Cab Width |
10'-00" |
| Top Walkway Width |
7'-04" |
| Walkway Width |
5'-00" |
| Engine Hood Width |
5'-05" |
| Center Bolster |
40'-06" |
| Center Front Truck to Front Pilot |
3'-03" |
| Center Rear Tucrk to Rear Pilot |
3'-03" |
| Distance between Truck Centers |
47'-11" |
| Minimum Turning Radious |
21 degrees / 21 degrees |
| -
| - |
| Fuel Oil: 800
| Lubricating Oil: 200 |
| Engine Cooling Water: 250
| Sand Capacity: 27 cu. ft. |
| Options: Dynamic Brakes |
| - |
 |
| Drawing by: Jacques Belanger |
Reference Sources:
- Diesesl locomotives, Cyclopedia, Vol 2 by Model Railroader
- Extra 2200 South, Issues 58 & 59
|
