Alco RS-36 (DL701A)

Somebody's Large Digital Image Here
Data Sheet Information Compiled by: JEAN-DENIS BACHAND

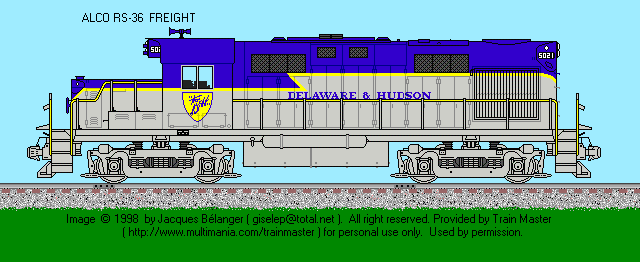

New: 2 April 2005 Drawing by: Jean-Denis Bachand
-
Engine Builder: Alco Engine: 4-cycle Model 251B V12
Bore & Stroke 9" X 10.5"
RPM (Maximum / Minimum) 1000 / 400
Main Generator: GE - GT581D2 1800
Gear Ratio: 74:18 / 64:19 Speed: 70 mph / 80 mph
4-Wheel Configuration: B-B
Traction Motor Blowers: Mechanical Driven (2) Model: Stuart
Weight: 240,000 lbs Traction Motors: GE 752 (Four)
Tractive Effort (starting) 66,000 lbs @ 25% Tractive Effort (continuous): 35,000 lbs @ 8 mph
Multiple Unit Capability: Yes Dynamic Braking: Yes
Auxilary Generator: GE 553 GY27 Alternator: not applicable
Air Brake: Westinghouse Model: 26L
Compressor: Westinghouse Model: 3CDC
Boiler Type: -- Lbs/hr: --
Quantity Built: 40 Dates: 2/1962 to 8/1963
- -
Exterior Dimensions RS-36
Total Length 57'-02"
Pilot to Pilot 52'-06"
Wheel Diameter 40"
Truck Wheel Base 9'-04"
Height to Top Engine Hood 14'-06"
Height to Top Cab Hood 15'-00"
Cab Width 10'-00"
Top Walkway Width 8'-10"
Walkway Width 5'-01"
Engine Hood Width 9'-10"
Center Bolster 31'-00"
Center Front Truck to Front Pilot 10'-07"
Center Rear Tucrk to Rear Pilot 10'-07"
Distance between Truck Centers 40'-04"
Minimum Turning Radious 30 degrees
- -
Fuel Oil: 1200 Lubricating Oil: 200
Engine Cooling Water: 250 Sand Capacity: 28 cu. ft.
Options:
Reference Sources:
  • Railroad Model Craftsman, Issue August 1978
  • Extra 2200 South
  • The Diesel Builders, Vol.2 by John F. Kirkland
