Alco RS-32 (DL721) |
 |
| Data Sheet Information Compiled by: JEAN-DENIS BACHAND |
| Updated: 20 May 2005 |

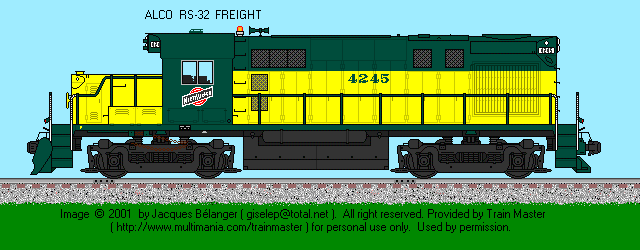

Drawing by: Jean-Denis Bachand |
| - |
| Engine Builder: Alco |
Engine: 4-cycle Model 251C V12 |
| Bore & Stroke |
9" X 10.5" |
| RPM (Maximum / Minimum) |
1025 / 400 |
| Main Generator: GE - GT581D2 |
2000 |
| Gear Ratio: 74:18 / 64:19 |
Speed: 70 mph / 80 mph |
| 4-Wheel |
Configuration: B-B |
| Traction Motor Blowers: Mechanical Driven (2) |
Model: ? |
| Weight: 240,000 lbs |
Traction Motors: GE 752 (Four) |
| Tractive Effort (starting) 66,000 lbs @ 25% |
Tractive Effort (continuous): 35,000 lbs @ 8 mph |
| Multiple Unit Capability: Yes |
Dynamic Braking: Yes |
| Auxilary Generator: GE 566 E1 |
Alternator: not applicable |
| Air Brake: Westinghouse |
Model: 26L |
| Compressor: Westinghouse |
Model: 3CDC |
| Boiler Type: -- |
Lbs/hr: -- |
| Quantity Built: 35
|
Dates: 6/1961 to 3/1962 |
| - |
- |
| Exterior Dimensions
| RS-32 |
| Total Length |
57'-02" |
| Pilot to Pilot |
52'-06" |
| Wheel Diameter |
40" |
| Truck Wheel Base |
9'-04" |
| Height to Top Engine Hood |
14'-06" |
| Height to Top Cab Hood |
15'-00" |
| Cab Width |
10'-00" |
| Top Walkway Width |
8'-10" |
| Walkway Width |
5'-01" |
| Engine Hood Width |
9'-10" |
| Center Bolster |
31'-00" |
| Center Front Truck to Front Pilot |
10'-07" |
| Center Rear Tucrk to Rear Pilot |
10'-07" |
| Distance between Truck Centers |
45'-11" |
| Minimum Turning Radious |
30 degrees |
| -
| - |
| Fuel Oil: 1200
| Lubricating Oil: 200 |
| Engine Cooling Water: 250
| Sand Capacity: 28 cu. ft. |
| Options: |
Reference Sources:
- Railroad Model Craftsman, Issue August 1978
- Extra 2200 South
- The Diesel Builders, Vol.2 by John F. Kirkland
|
