MLW RSC-24 |
 |
| Data Sheet Information Compiled by: Jean-Denis Bachand |
| New: 26 March 2005 |

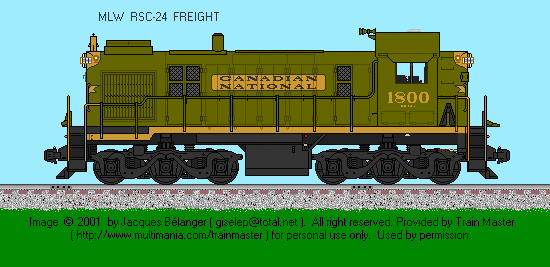

Drawing by: Jacques Belanger |
| - |
| Engine Builder: Dominion Engineering Works |
Engine: 4-cycle Model 244H V12 |
| Bore & Stroke |
9" X 10.5" |
| RPM (Maximum / Minimum) |
1000 / 400 |
| Main Generator: GE - 581 |
Horsepower: 1400 |
| Gear Ratio: 74:18 |
Speed: 65 mph |
| Trucks: Tri-Mount 6-Wheel |
Configuration: A-1-A |
| Traction Motor Blowers: Mechanical Driven (2) |
Model: Stuart |
| Weight: 238,000 lbs |
Traction Motors: GE 752 (four) |
| Tractive Effort (starting) 59,500 lbs @ 25% |
Tractive Effort (continuous): 47,600 lbs @ 6 mph |
| Multiple Unit Capability: Yes |
Dynamic Braking: No |
| Auxilary Generator: GE GMG535 |
Alternator: not applicable |
| Air Brake: Westinghouse |
Model: 26L |
| Compressor: Westinghouse |
Model: 3CDC |
| Boiler Type: -- |
PSI: -- |
| Quantity Built: 4
|
Dates: 3 & 4/1959 |
| - |
- |
| Exterior Dimensions
| RS-24 |
| Total Length |
46'-04" |
| Pilot to Pilot |
37'-01" |
| Wheel Diameter |
40" |
| Truck Wheel Base |
11'-00" |
| Height to Top Engine Hood |
15'-02" |
| Height to Top Cab Hood |
15'-02" |
| Cab Width |
10'-00" |
| Top Walkway Width |
8'-11" |
| Walkway Width |
5'-00" |
| Engine Hood Width |
5'-05" |
| Center Bolster |
22'-03" |
| Center Front Truck to Front Pilot |
7'-05" |
| Center Rear Tucrk to Rear Pilot |
7'-05" |
| Distance between Truck Centers |
33'-03" |
| Minimum Turning Radious |
30 degrees / 30 degrees |
| -
| - |
| Fuel Oil: 950
| Lubricating Oil: 167 |
| Engine Cooling Water: 208
| Sand Capacity: 28 cu. ft. |
Options:
- Fully Automatic Transition
- Air Signal Lines
|
Reference Sources:
- Canadian National Mechanical Data Book
|
