MLW M-630

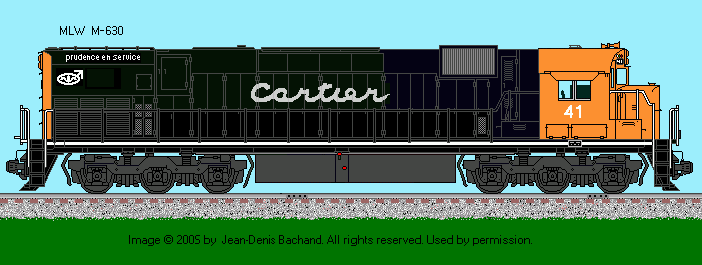

Somebody's Large Digital Image Here
Data Sheet Information Compiled by: Jean-Denis Bachand
New: 13 April 2005 Drawing by: Jean-Denis Bachand
-
Engine Builder: Alco Prroducts Engine: 4-cycle Model 251E V16
Bore & Stroke 9" X 10.5"
RPM (Maximum / Minimum) 1100 / 400
Main Generator: GE GTA11 Horsepower: 3000
Gear Ratio: 74:18 Speed: 70 mph
Trucks: ZWT-2 (6-Wheel) Configuration: C-C
Traction Motor Blowers: Chicgo Mechanical Driven (2) Model: Sturt
Weight: 420,000 lbs Traction Motors: GE 752 (Six)
Tractive Effort (starting) 85,800 lbs @ 25% Tractive Effort (continuous): 79,500 lbs @ 12 mph
Multiple Unit Capability: Yes Dynamic Braking: Yes
Auxilary Generator: GE Alternator: --
Air Brake: Westinghouse Model: 26LUM
Compressor: Westinghouse Model: 3CDCL
Quantity Built: 29 Dates: 9/1969 to 3/1970
- -
Exterior Dimensions M-630
Total Length 69'-10"
Pilot to Pilot 67'-05"
Wheel Diameter 40"
Truck Wheel Base 11'-02"
Height to Top Engine Hood 15'-00"
Height to Top Cab Hood 15'-05"
Cab Width 10'-01"
Top Walkway Width 9'-06"
Walkway Width 5'-01"
Engine Hood Width 9'-11"
Center Bolster 46'-09"
Center Front Truck to Front Pilot 7'-09" (Hi-Adhesion 5'-08")
Center Rear Tucrk to Rear Pilot 7'-09" (Hi-Adhesion 5'-08")
Distance between Truck Centers 54'-06"
Minimum Turning Radious 21 degrees
- -
Fuel Oil: 3300 Lubricating Oil: 300
Engine Cooling Water: 300 Sand Capacity: 56 cu. ft.
