MLW M-424

Somebody's Large Digital Image Here
Data Sheet Information Compiled by: JEAN-DENIS BACHAND
New: 15 April 2005 Drawing by: Jean-Denis Bachand
-
Engine Builder: Montreal Locomotive Works Engine: 4-cycle Model 251C V12
Bore & Stroke 9" X 10.5"
RPM (Maximum / Minimum) 1050 / 450
Main Generator: GE GTA17 Horsepower: 2400
Gear Ratio: 74:18 Speed: 67 mph
ZWT-2 4-Wheel Configuration: B-B
Traction Motor Blowers: Chicago Model: Mechanical Driven (2)
Weight: 272,000 lbs Traction Motors: GE 752 (four)
Tractive Effort (starting) 60,400 lbs @ 25% Tractive Effort (continuous): 60,000 lbs @ 8 mph
Multiple Unit Capability: Yes Dynamic Braking: Yes
Auxilary Generator: GE 553 GY27 Alternator: GE Exciter GY2P7
Air Brake: Westinghouse Model: 26LUM
Compressor: Westinghouse Model: 3CDCL
Quantity Built: ?? Dates: ??
- -
Exterior Dimensions M-424
Total Length 61'-00"
Pilot to Pilot 52'-02"
Wheel Diameter 40"
Truck Wheel Base 9'-04"
Height to Top Engine Hood 15'-07"
Height to Top Cab Hood 14'-11"
Cab Width 10'-05"
Top Walkway Width 9'-09"
Walkway Width 5'-01"
Engine Hood Width 10'-04"
Center Bolster 36'-05"
Center Front Truck to Front Pilot 7'-10"
Center Rear Tucrk to Rear Pilot 7'-09"
Distance between Truck Centers 47'-07"
Minimum Turning Radious 30 degrees
- -
Fuel Oil: 2000 Lubricating Oil: 160
Engine Cooling Water: 200 Sand Capacity: 56 cu. ft.
Options:
  • Fully Automatic Transition
  • Air Signal Lines
  • Seal Beam with TrainLines Control
  • Automatic Locomotive Testing
-
Somebody's Large Digital Image Here

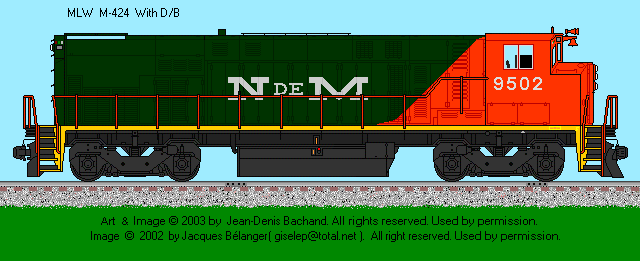

Drawing by: Jean-Denis Bachand
