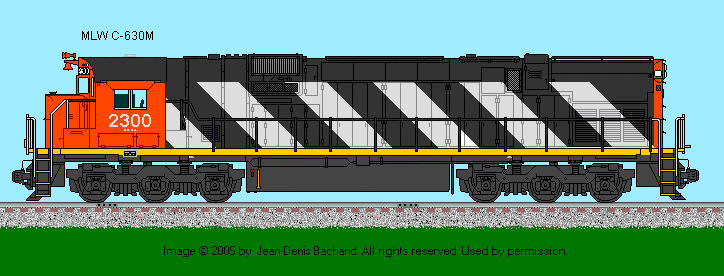

MLW C-630M (DL630)

Somebody's Large Digital Image Here
Data Sheet Information Compiled by: Jean-Denis Bachand
New: 13 April 2005 Drawing by: Jean-Denis Bachand
-
Engine Builder: American Locomotive Company Engine: 4-cycle Model 251E V16
Bore & Stroke 9" X 10.5"
RPM (Maximum / Minimum) 1100 / 400
Main Generator: GE GTA9 Horsepower: 3000
Gear Ratio: 74:18 Speed: 70 mph
6-Wheel Configuration: C-C
Traction Motor Blowers: Mechanical Driven (2) Model: Sturt
Weight: 420,000 lbs Traction Motors: GE 752 (Six)
Tractive Effort (starting) 85,800 lbs @ 25% Tractive Effort (continuous): 79,500 lbs @ 12 mph
Multiple Unit Capability: Yes Dynamic Braking: Yes
Auxilary Generator: GE Alternator: --
Air Brake: Westinghouse Model: 36L
Compressor: Westinghouse Model: 3CDC
Quantity Built: 56 Dates: 8/1967 to 7/1969
- -
Exterior Dimensions C-630m
Total Length 69'-10"
Pilot to Pilot 62'-05"
Wheel Diameter 40"
Truck Wheel Base 11'-02"
Height to Top Engine Hood 15'-00"
Height to Top Cab Hood 15'-05"
Cab Width 10'-01"
Top Walkway Width 9'-05"
Walkway Width 5'-01"
Engine Hood Width 9'-11"
Center Bolster 46'-05"
Center Front Truck to Front Pilot 8'-00" (Hi-Adhesion 5'-08")
Center Rear Tucrk to Rear Pilot 8'-00" (Hi-Adhesion 5'-08")
Distance between Truck Centers 57'-06"
Minimum Turning Radious 21 degrees
- -
Fuel Oil: 2000 Lubricating Oil: 330
Engine Cooling Water: 300 Sand Capacity: 56 cu. ft.
Options:
Reference Sources:
  • Canadian National Mechanical Data Book
  • Canadian Pacific Mechanical Data Book
