Alco C-628 (DL628) |
 |
| Data Sheet Information Compiled by: Jean-Denis Bachand |
| New: 11 April 2005 |

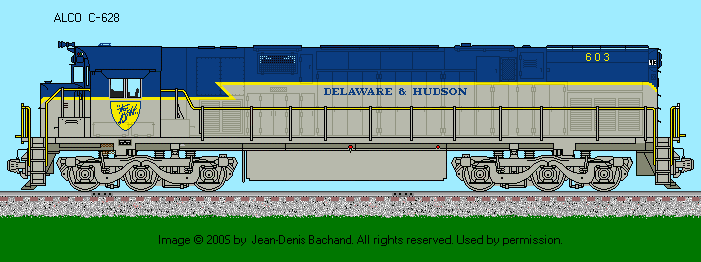

Drawing by: Jean-Denis Bachand |
| - |
| Engine Builder: American Locomotive Company |
Engine: 4-cycle Model 251C V16 |
| Bore & Stroke |
9" X 10.5" |
| RPM (Maximum / Minimum) |
1100 / 400 |
| Main Generator: GE - GT586A4 |
Horsepower: 2750 |
| Gear Ratio: 74:18 |
Speed: 65 mph |
| Tri-Mount 6-Wheel |
Configuration: C-C |
| Traction Motor Blowers: Mechanical Driven (2) |
Model: Sturt |
| Weight: 408,000 lbs |
Traction Motors: GE 752 (Six) |
| Tractive Effort (starting) 85,750 lbs @ 25% |
Tractive Effort (continuous): 79,500 lbs @ 12 mph |
| Multiple Unit Capability: Yes |
Dynamic Braking: Yes |
| Auxilary Generator: GE |
Alternator: |
| Air Brake: Westinghouse |
Model: 26L |
| Compressor: Westinghouse |
Model: 3CDC |
| Quantity Built: 186
|
Dates: 12/1963 to 12/1968 |
| - |
- |
| Exterior Dimensions
| C-628 |
| Total Length |
69'-06" |
| Pilot to Pilot |
64'-06" |
| Wheel Diameter |
40" |
| Truck Wheel Base |
12'-06" |
| Height to Top Engine Hood |
15'-06" |
| Height to Top Cab Hood |
14'-10" |
| Cab Width |
10'-01" |
| Top Walkway Width |
9'-07" |
| Walkway Width |
5'-01" |
| Engine Hood Width |
9'-11" |
| Center Bolster |
46'-05" |
| Center Front Truck to Front Pilot |
6'-09" |
| Center Rear Tucrk to Rear Pilot |
6'-09" |
| Distance between Truck Centers |
53'-11" |
| Minimum Turning Radious |
21 degrees |
| -
| - |
| Fuel Oil: 2000
| Lubricating Oil: 300 |
| Engine Cooling Water: 300
| Sand Capacity: 56 cu. ft. |
| Options: |
| - |
 |
Drawing by: Jean-Denis Belanger |
Reference Sources:
- Railroad Model Craftsman, June 1984
- Extra 2200 South, #54
|
