General Electric B36-8W |
 |
| Data Sheet Information Compiled by: JEAN-DENIS BACHAND |
| New: 9 December 2005 |

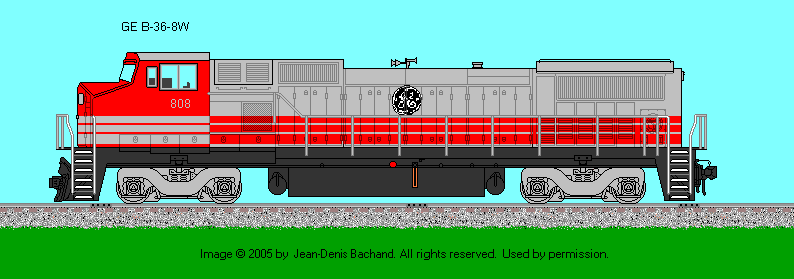

Drawing by: Jean-Denis Bachand |
| - |
| Engine Builder: General Electric |
Engine: 4-cycle Model 16FDL |
| Bore & Stroke |
9" X 10.5" |
| RPM (Maximum / Minimum) |
1050 / 450 |
| Main Generator: GE - GMG186 |
Horsepower: 3600 |
| Gear Ratio: 74:18 |
Speed: 70 mph |
| Trucks: 4-Wheel FB-2 |
Configuration: B-B |
| Traction Motor Blowers: Mechanical Driven (2) |
Model: ? |
| Weight: 274,000 lbs |
Traction Motors: GE 752AF (Four) |
| Tractive Effort (starting) 68,500 lbs @ 25% |
Tractive Effort (continuous): 68,000 lbs @ 18.3 mph |
| Multiple Unit Capability: Yes |
Dynamic Braking: Yes |
| Auxilary Generator: GY 27 |
Alternator: GY27 |
| Air Brake: Westinghouse |
Model: 26L |
| Air Compressor: Westinghouse |
Model: 3CDC |
| Quantity Built: 1
|
Dates: 10/1982 |
| - |
- |
| Exterior Dimensions
| B36-8W |
| Total Length |
66'-04" |
| Wheel Diameter |
40" |
| Truck Wheel Base |
9'-00" |
| Height to Top Engine Hood |
15'-04.5" |
| Height to Top Cab |
14'-11.5" |
| Cab Width |
10'-01.5" |
| Hood Width |
9'-11" |
| Height to Walkway |
9'-04" |
| Width of Walkway |
5'-00" |
| Center Bolster |
39'-04" |
| Leading Edge Front Truck to Front Pilot |
2'-03" |
| Trailing Edge Rear Truck to Rear Pilot |
1'-09" |
| Leading Edge Front Truck to Trailing Edge Rear Truck |
45'-11" |
| Minimum Turning Radious |
39 degrees |
| -
| - |
| Fuel Oil: 3150 gallons
| Lubricating Oil: 400 gallons |
| Engine Cooling Water: 410 gallons
| Sand Capacity: 40 cu. ft. |
| Options:
- |
Reference Sources:
- GE Advanced Generation, 1989, by James W. Kerr
- GE Locomotives, volumes 1 & 2, 1981, by James W. Kerr
- Car & Locomotive Cyclopedia, 1984, by Simmons & Boardman
- The Modern Locomotive Handbook, 1979, Railway Fuel & Operating Officers Assn.
- Diesel & Electric Locomotive Specifications, 1981, by F. K. Hudson.
|
