Motive Power Industries GP20D

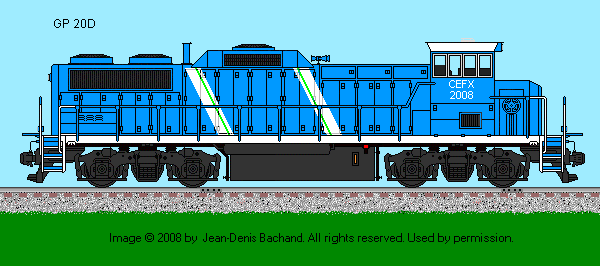

Somebody's Large Digital Image Here
Data Sheet Information Compiled by: Jean-Denis Bachand
New: 26 May 2008 Artwork by: Jean-Denis Bachand
-
Engine Builder: Caterpillar Engine: 3616 16-170b20 (4/EPA Tier 2)
Bore: 270 mm (11") Stroke: 299 mm /(11.8")
RPM Max/Min: 1800/450
Engine Horsepower 1400
Main Generator: KATO Model: 8P6.5-2250
Gear Ratio: 62:15 Speed: 70 mph
Trucks: 4-Wheel Configuration: B-B
Traction Motor Blowers: Delco (4) Model: Electrical Drive
Weight: 260,000 lbs Traction Motors: GM D78B (4)
Tractive Effort (starting) 85,000 lbs @ 25% Tractive Effort (continuous): 55,000 lbs @ 9.3mph
Multiple Unit Capability: Yes Dynamic Braking: Yes
Auxilary Generator: GM D-18 Alternator: Newage
Air Brake: Westinghouse Model: 26L
Quantity Built: 40 Dates: 6/2000 to Date
- -
Exterior Dimensions GP20D
Total Length 56'-02"
Wheel Diameter 40"
Truck Wheel Base 9'-00"
Height to Top Hood 13'-11"
Height to Top Cab 14'-06"
Cab Width 10'-04"
Hood Width 10'-01"
Height of Walkway 8'-09.5"
Walkway Width 4'-07.5"
Center Bolster 31'-00"
Center Front Truck to Front Pilot 2'-04.5"
Center Rear Truck to Rear Pilot 2'-04.5"
Distance between Truck Centers 40'-00"
Minimum Turning Radious 42 degrees
- -
Fuel Oil: 2500 (2700) Lubricating Oil: 82
Engine Cooling Water: 41.4 Sand Capacity: 26 cu. ft.
Options:
  • Q-Tron QES LLL Microprocessor
-
  • Diesel Locomotives by Greg McDcnnell
  • Diesel Locomotives, Volume 2 by Bob Hayden
  • Illustrated Treasury of GM Locomotives by James W. Kerr
  • Diesel Locomotives, Volume 2 by Bob Hayden
