Motive Power Industries F40PH-2C

Somebody's Large Digital Image Here
Data Sheet Information Compiled by: Jean-Denis Bachand

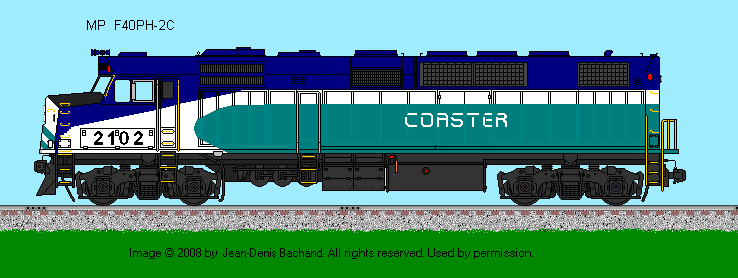

New: 12 December 2008 Artwork by: Jean-Denis Bachand
-
Engine Builder: EMD Engine: 645E
Cycle: 2 Bore & Stroke: 9.2" x 10"
RPM Max/Min: 800 / 275
Type: V16 Total Horsepower: 3000
Main Generator: GM Model: AR10 (2)
Gear Ratio: 57:20 Speed: 103 mph
Trucks: 4-Wheel Configuration: B-B
Traction Motor Blowers: 4 Model: Delco Elec. Drive
Weight: 282,000 lbs Traction Motors: GM D78B (4)
Tractive Effort (starting) 65,000 lbs @ 25% Tractive Effort (continuous): 38,240 lbs @ 16.1 mph
Multiple Unit Capability: Yes Dynamic Braking: Yes
Auxilary Generator: Delco A8102 Alternator: GM GMD14
Air Compressor: Gerd. Denver Model: WBO
Air Brake: Westinghouse Model: 26L
Quantity Built: 23 Dates: 5/1991 to 7/1998
- -
Exterior Dimensions F40PH-2C
Total Length 64'-03"
Wheel Diameter 40"
Truck Wheel Base 9'-04"
Height to Top Hood 15'-04.5"
Height to Top Cab 15'-07.5"
Cab Width 10'-04"
Hood Width 10'-00"
Center Bolster 41'-01"
Center Front Truck to Front Pilot 3'-01"
Center Rear Truck to Rear Pilot 2'-01"
Distance between Truck Centers 50'-05"
Minimum Turning Radious 39 degrees
- -
Fuel Oil: 2500 gal. Lubricating Oil: 243 gal.
Engine Cooling Water: 254 gal. Sand Capacity: 49 cu. ft.
Options: -
  • Micro-processor controls
  • Wheel Slip Control (Boasts Adhesion)
-
  • Diesel Locomotives by Greg McDonnell
