GE U6B

Somebody's Large Digital Image Here
-
Data Sheet Information Compiled by: JEAN-DENIS BACHAND

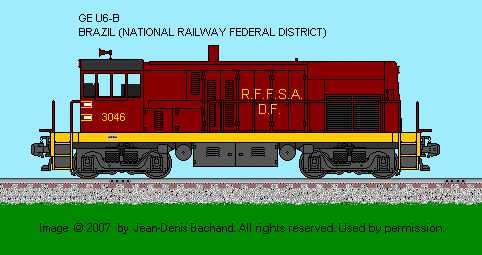

New: 24 March 2007 Drawing by: Jean-Denis Bachand
-
Engine Builders: Caterpillar and Cummins 4-cycle Engine: CAT (D379 V8) and (D379 V12)
Bore & Stroke 9" X 10.5"
RPM (Maximum / Minimum) 1200 / 640
Main Generator: GE - GT751 Horsepower: 540
Gear Ratio: 103:15 Speed: 55 mph
Trucks: 4-Wheel Configuration: B-B
Traction Motor Blowers: Mechanically Driven Model: GE GY27 (two)
Weight: 100,000 lbs Traction Motors: GE 748 (four)
Tractive Effort (starting) 27,000 lbs @ 30% Tractive Effort (continuous): 12,500 lbs @ 20 mph
Multiple Unit Capability: Yes Dynamic Braking: Yes
Auxilary Generator: GE GY27 Alternator: GE GMG-146
Air Brake: Westinghouse Model: 26LA
Compressor: Westinghouse Model: 2CDC
Quantity Built: 26 (Phase 1) and unknown (Phase 2) Dates: 1959-1961(Phase 1) and 1962-1991 (Phase 2)
- -
Exterior Dimensions U6B
Total Length 33'-06" (Phase 1) and 37'-0" (Phase 2)
Wheel Diameter 36"
Truck Wheel Base 6'-10"
Height to Top Engine Hood 12'-00"
Height to Top Cab 11'-10"
Cab Width 9'-00"
Engine Hood Width 8'-10"
Walkway Width 4'-00"
Height Walkway 9'-00"
Center Bolster 19'-05"
Center Front Truck to Front Pilot 0'-06"
Center Rear Tucrk to Rear Pilot 0'-06"
Distance between Truck Centers 26'-03"
Minimum Turning Radious 57 degrees
- -
Fuel Oil: 400 Lubricating Oil: 120
Engine Cooling Water: 140 Sand Capacity: 12 cu. ft.
Options:
-
Reference Sources:
  • GE Advanced Generation,1989, by James W. Kerr
  • GE Locomotives, Volume 1, 1981 by James W. Kerr
  • GE Locomotives, Volume 2, 1981 by James W. Kerr
  • The Car & Locomotive Encyclopedia, 1984, Simmons & Boardman Publications
  • The Modern Locomotives Handbook, 1979, Railway Fuel & Operating Officers Association
  • Diesel & Electric Locomotive Specifications, 1981 by F.K. Hudson
  • GE Export U-Series Modle Evolution, by Steve Palmano
