General Electric C38ACCHE |
 |
| Data Sheet Information Compiled by: JEAN-DENIS BACHAND |
| New: 16 February 2007 |

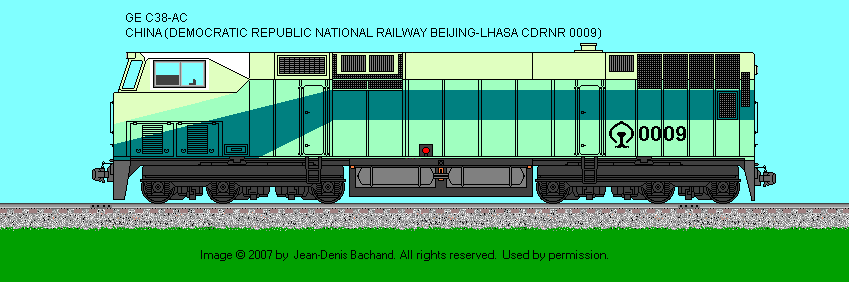

Drawing by: Jean-Denis Bachand |
| - |
| Engine Builder: General Electric |
Engine: 4-cycle Model 16FDL |
| Bore & Stroke |
9" X 10.5" |
| RPM (Maximum / Minimum) |
1050 / 450 |
| Main Generator: GE - GMG196A |
Horsepower: 3150 |
| Gear Ratio: 83:20 |
Speed: 70 mph |
| Trucks: 6-Wheel |
Configuration: C-C |
| Traction Motor Blowers: Mechanical Driven (2) |
Model: ? |
| Weight: 346,300 lbs |
Traction Motors: GE 752 (Six) |
| Tractive Effort (starting) 92,750 lbs @ 25% |
Tractive Effort (continuous): 106,790 lbs @ 10.9 mph |
| Multiple Unit Capability: No |
Dynamic Braking: Yes |
| Auxilary Generator: GYA 30 |
Alternator: GYA 30 |
| Air Brake: Westinghouse |
Model: 26RL |
| Air Compressor: Westinghouse |
Model: 3CDC |
| Quantity Built: 78
|
Dates: 7/2006 to Date |
| - |
- |
| Exterior Dimensions
| C38ACCHE |
| Total Length |
70'-08" |
| Wheel Diameter |
40" |
| Truck Wheel Base |
14'-07" |
| Height to Top Engine Hood |
15'-02.5" |
| Height to Top Cab Hood |
15'-04.5" |
| Cab Width |
10'-03" |
| Hood Width |
10'-03" |
| Top of Walkway |
9'-11" |
| Width of Walkway |
5'-00" |
| Center Bolster |
43'-04" |
| Leading Edge Front Truck to Front Pilot |
1'-07.5" |
| Trailing Edge Rear Truck to Rear Pilot |
1'-07.5" |
| Center of Lead Truck to Center of Trailing Truck |
56'-09" |
| Minimum Turning Radious |
21 degrees |
| -
| - |
| Fuel Oil: 4000 gallons
| Lubricating Oil: 400 gallons |
| Engine Cooling Water: 410 gallons
| Sand Capacity: 40 cu. ft. |
| Options: |
Reference Sources:
- Extra 2200 South, issue #75
- GE Advanced Generation, 1989, by James W. Kerr
- GE Locomotives, volumes 1 & 2, 1981, by James W. Kerr
- Car & Locomotive Cyclopedia, 1984, by Simmons & Boardman
- The Modern Locomotive Handbook, 1979, Railway Fuel & Operating Officers Assn.
- Diesel & Electric Locomotive Specifications, 1981, by F. K. Hudson.
- GE Advanced Generation, 1989, by James W. Kerr
- GE 25B Technical Manual, 1960
|
