EMD SDP38

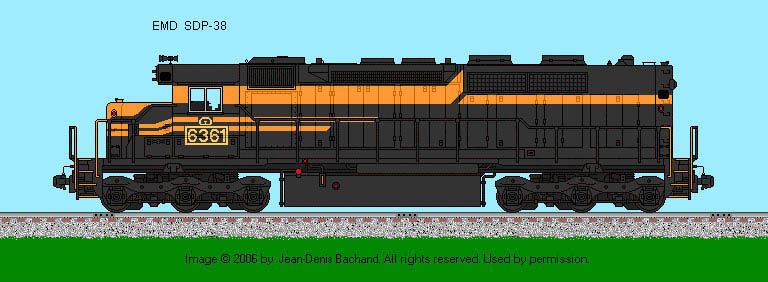

Somebody's Large Digital Image Here
Data Sheet Information Compiled by: JEAN-DENIS BACHAND
New: 9 June 2006  Artwork by: Jean-Denis Bachand
-
Engine Builder: EMD Engine: 645E3 16 cylinder
Bore & Stroke 8.5" X 10"
RPM (Maximum / Minimum) 800 / 275
Main Generator: GM - D32 Horsepower: 2000
Gear Ratio: 62:15 Speed: 65 mph
Trucks: 6-Wheel Configuration: C-C
Traction Motor Blowers: Electrical Drive (2) Model: GM
Weight: 360,000 lbs Traction Motors: Six GM - D77
Tractive Effort (starting) 90,000 lbs @25% Tractive Effort (continuous): 82,100 lbs @ 12 mph
Multiple Unit Capability: Yes Dynamic Braking: Yes
Auxilary Generator: GM Alternator: Delco 64-72
Air Brake: Westinghouse Model: 24L
Compressor: Gardner-Denver Model: WBO
Quantity Built: 39 Dates: 1967
- -
Exterior Dimensions SDP38
Total Length 68'-10"
Wheel Diameter 40"
Truck Wheel Base 13'-07"
Height to Top Engine Hood 15'-02"
Height to Top Cab 15'-08.5"
Cab Width 10'-04"
Top of Walkway 8'-09.5"
Walkway Width 3'-08.5"
Engine Hood Width 10'-03"
Center Bolster 40'-00"
Center Front Truck to Front Pilot 3'-09"
Center Rear Truck to Rear Pilot 3'-09"
Distance between Truck Centers 53'-07"
Minimum Turning Radious 57 degrees
- -
Fuel Oil: 3200 Lubricating Oil: 243
Engine Cooling Water: 260 Sand Capacity: 56 cu. ft.
Options: Vapor-Clarkson Steam Boiler AR4125
-
