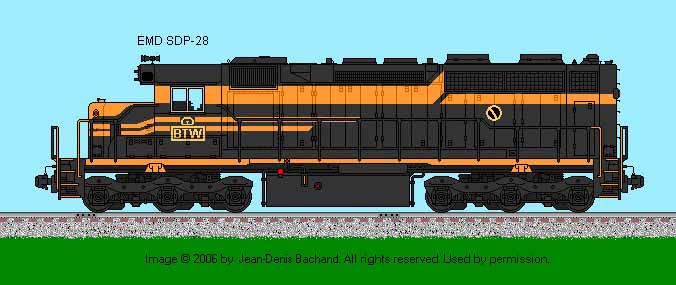

EMD SDP28 |
 |
| Data Sheet Information Compiled by: JEAN-DENIS BACHAND |
| New: 6 May 2006 |
Artwork by: Jean-Denis Bachand |
| - |
| Engine Builder: EMD |
Engine: 567D1 12 cylinder |
| Bore & Stroke |
8.5" X 10" |
| RPM (Maximum / Minimum) |
800 / 275 |
| Main Generator: GM - D32 |
Horsepower: 1800 |
| Gear Ratio: 62:15 |
Speed: 65 mph |
| Trucks: 6-Wheel |
Configuration: C-C |
| Traction Motor Blowers: Electrical Drive (2) |
Model: GM |
| Weight: 260,000 lbs |
Traction Motors: GM - D47 (Six) |
| Tractive Effort (starting) 64,000 lbs @25% |
Tractive Effort (continuous): 45,000 lbs @ 12 mph |
| Multiple Unit Capability: Yes |
Dynamic Braking: Yes |
| Auxilary Generator: GM |
Alternator: Delco 64-72 |
| Air Brake: Westinghouse |
Model: 24L |
| Compressor: Gardner-Denver |
Model: WBO |
| Quantity Built: 5
|
Dates: 1966 |
| - |
- |
| Exterior Dimensions
| SDP28 |
| Total Length |
56'-02" |
| Wheel Diameter |
40" |
| Truck Wheel Base |
9'-00" |
| Height to Top Engine Hood |
14'-04" |
| Height to Top Cab |
15'-03" |
| Cab Width |
10'-04" |
| Top of Walkway |
10'-09" |
| Walkway Width |
3'-08.5" |
| Engine Hood Width |
10'-02" |
| Center Bolster |
24'-08" |
| Center Front Truck to Front Pilot |
3'-10" |
| Center Rear Truck to Rear Pilot |
3'-10" |
| Distance between Truck Centers |
41'-00" |
| Minimum Turning Radious |
57 degrees |
| -
| - |
| Fuel Oil: 1700
| Lubricating Oil: 243 |
| Engine Cooling Water: 260
| Sand Capacity: 18 cu. ft. |
| Options: Vapor-Clarkson Steam Boiler AR4225 |
| - |
