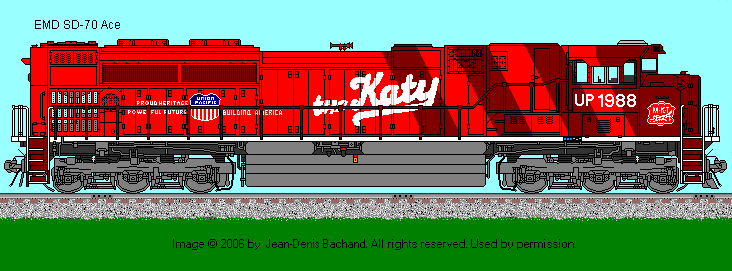

EMD SD70ACe |
 |
| Data Sheet Information Compiled by: R. Craig |
| New: 11 September 2006 |
Artwork by: Jean-Denis Bachand |
| - |
| Engine Builder: EMD |
Engine: 710G3C-ES 16 cylinder |
| Bore & Stroke |
9.02" X 11" |
| RPM (Maximum / Minimum) |
904 /318 |
| Main Generator: GM TA17/CA7A |
Horsepower: 4300 |
| Gear Ratio: 70:17 |
Speed: 70 mph |
| Trucks: HTC-RII 6-Wheel |
Configuration: C-C |
| Weight: 408,000 lbs |
Traction Motors: Six GM A3432 |
| Traction Motor Blowers: Delco (4) |
Model: Electrical Drive |
| Weight: 408,000 lbs |
Traction Motors: Six GM A3432 |
| Tractive Effort (starting) 191,000 lbs @ 35% |
Tractive Effort (continuous): 157,000 lbs @ 12 mph |
| Multiple Unit Capability: Yes |
Dynamic Braking: Yes |
| Auxilary Generator: GM A8589 |
Alternator: GM CA7A |
| Air Brake: Westinghouse |
Model: 26L |
| Compressor: Gardner-Denver |
Model: WLASC |
| Quantity Built: 1435+
|
Dates: 4/2003 to date |
| - |
- |
| Exterior Dimensions
| SD70ACe |
| Total Length |
74'-03" |
| Wheel Diameter |
42" |
| Truck Wheel Base |
13'-07" |
| Height |
15'-11" |
| Cab Width |
10'-03" |
| Top of Walkway |
9'-04.5" |
| Distance between Truck Centers |
47'-10" |
| Locomotive Wheel Base |
61'-05" |
| Minimum Turning Radious |
29 degrees |
| -
| - |
| Fuel Oil: 4900
| Lubricating Oil: 420 |
| Engine Cooling Water: 275
| Sand Capacity: 40 cu. ft. |
| Options: |
| - |
Reference Sources:
- Diesel Locomotives, Vol. 2, by Bob Hayden
- Illustrated Treasury of GM Locomotives by James W. Kerr
- Diesel Locomotives, The First 50 Years, by Louis A. Marre
- Diesel Locomotives by Greg McDonnell
|
