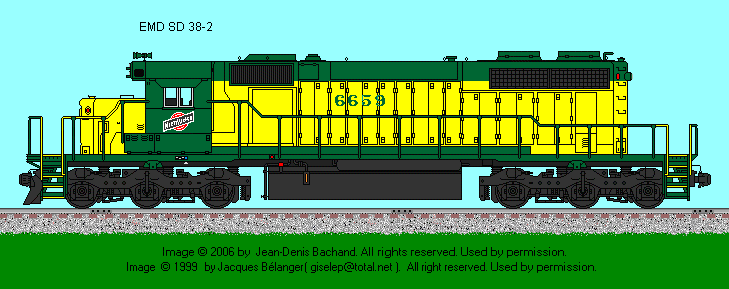

EMD SD38-2

Somebody's Large Digital Image Here
Data Sheet Information Compiled by: JEAN-DENIS BACHAND
New: 1 September 2006  Artwork by: Jean-Denis Bachand
-
Engine Builder: EMD Engine: 645E3 16 cylinder
Bore & Stroke 8.5" X 10"
RPM (Maximum / Minimum) 900 / 315
Main Generator: GM - AR10 Horsepower: 2000
Gear Ratio: 62:15 Speed: 65 mph
Trucks: 6-Wheel Configuration: C-C
Traction Motor Blowers: Electrical Drive (2) Model: GM
Weight: 368,000 lbs Traction Motors: Six GM - D77
Tractive Effort (starting) 90,000 lbs @25% Tractive Effort (continuous): 82,100 lbs @ 6.6 mph
Multiple Unit Capability: Yes Dynamic Braking: Yes
Auxilary Generator: Delco A8102 Alternator: Delco 14
Air Brake: Westinghouse Model: 26L
Compressor: Gardner-Denver Model: WBO
Quantity Built: 81 Dates: 11/1972 to 6/1979
- -
Exterior Dimensions SD38-2
Total Length 68'-10"
Wheel Diameter 40"
Truck Wheel Base 13'-07"
Height to Top Engine Hood 14'-08"
Height to Top Cab 15'-07.5"
Cab Width 10'-03"
Top of Walkway 8'-09.5"
Walkway Width 3'-09.5"
Engine Hood Width 10'-00"
Center Bolster 43'-06"
Center Front Truck to Front Pilot 3'-10"
Center Rear Truck to Rear Pilot 3'-10"
Distance between Truck Centers 57'-03"
Minimum Turning Radious 57 degrees
- -
Fuel Oil: 3200 Lubricating Oil: 243
Engine Cooling Water: 240 Sand Capacity: 56 cu. ft.
Options: -
-
Reference Sources:
  • Diesel Locomtoives, Vol.2, by Bob Hayden
  • Illustrated Treasury of GM Locomotives, by James W. Kerr
  • Diesel Locomotives, The First 50 Years by Louis A. Marre
  • The Second Diesel Spotter's Guide, by Jerry A. Pinkepank
  • "Early Diesel and Electric Locomotives," Rail Heritage Publications
  • Diesel & Electric Locomotive Specificiations, 1981 by F.K. Hudson
  • Train Shed Cyclopedia, Vol. 20, 58, 60, 64, 80
