EMD MP15DC and MP15AC |
 |
| Data Sheet Information Compiled by: JEAN-DENIS BACHAND |
| New: 6 May 2006 |

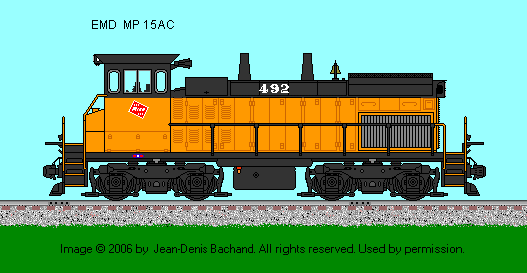

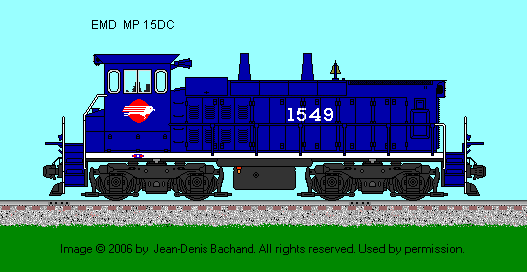

Artwork by: Jean-Denis Bachand |
| - |
| Engine Builder: EMD |
Engine: 645E 12 cylinder |
| Bore & Stroke |
8.5" X 10" |
| RPM (Maximum / Minimum) |
800 / 275 |
| Main Generator: GM - D15C (and D14) |
Horsepower: 1500 |
| Gear Ratio: 62:15 |
Speed: 65 mph |
| Trucks: 4-Wheel |
Configuration: B-B |
| Traction Motor Blowers: Mechanical Drive (1) |
Model: GM |
| Weight: 250,000 lbs |
Traction Motors: Four GM - D77 (and D79AR10) |
| Tractive Effort (starting) 62,000 lbs @25% |
Tractive Effort (continuous): 48,800 lbs @ 9.3 mph |
| Multiple Unit Capability: Optional |
Dynamic Braking: No |
| Auxilary Generator: GM |
Alternator: Delco |
| Air Brake: Westinghouse |
Model: 24L |
| Compressor: GMD |
Model: WXO |
| Quantity Built: 241 (and 230 MP15ACs)
|
Dates: 2/1974 to 11/1980 (8/1975 to 8/1984) |
| - |
- |
| Exterior Dimensions
| MP15DC & MP15AC |
| Total Length |
48'-08" (and 49"-02") |
| Wheel Diameter |
40" |
| Truck Wheel Base |
9'-00" |
| Height to Top Engine Hood |
12'-08" |
| Height to Top Cab |
15'-00" |
| Cab Width |
10'-03" |
| Top of Walkway |
7'-06" |
| Walkway Width |
4'-07.5" |
| Engine Hood Width |
10'-00" |
| Center Bolster |
24'-02" |
| Center Front Truck to Front Pilot |
2'-10" |
| Center Rear Tucrk to Rear Pilot |
2'-10" |
| Distance between Truck Centers |
33'-02" (and 33'-08") |
| Minimum Turning Radious |
30 degrees |
| -
| - |
| Fuel Oil: 1100
| Lubricating Oil: 165 |
| Engine Cooling Water: 230
| Sand Capacity: 28 cu. ft. |
| Options: None |
| - |
 |
| Artwork by: Jean-Denis Bachand |
| - |
Reference Sources:
- Diesel Locomtoives, Vol.2, by Bob Hayden
- Illustrated Treasury of GM Locomotives, by James W. Kerr
- Diesel Locomotives, The First 50 Years by Louis A. Marre
- The Second Diesel Spotter's Guide, by Jerry A. Pinkepank
- "Early Diesel and Electric Locomotives," Rail Heritage Publications
- Diesel & Electric Locomotive Specificiations, 1981 by F.K. Hudson
- Train Shed Cyclopedia, Vol. 20, 58, 60, 64, 80
|
