EMD FP45

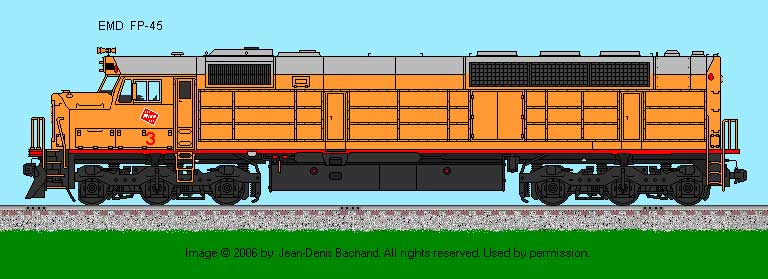

Somebody's Large Digital Image Here
Data Sheet Information Compiled by: JEAN-DENIS BACHAND
New: 29 August 2006  Artwork by: Jean-Denis Bachand
-
Engine Builder: EMD Engine: 645E3 20-cylinder
Bore & Stroke 9.02" X 10"
RPM (Maximum / Minimum) 900 / 215
Main Generator: GM - D32 Horsepower: 3600
Gear Ratio: 62:15 Speed: 65 mph
Trucks: 6-Wheel Configuration: C-C
Traction Motor Blowers: Electrical Drive (4) Model: Delco
Weight: 360,000 lbs Traction Motors: Four GM - D77
Tractive Effort (starting) 90,000 lbs @25% Tractive Effort (continuous): 82,100 lbs @ 16.1 mph
Multiple Unit Capability: Yes Dynamic Braking: Yes
Auxilary Generator: Delco A8102 Alternator: GMD14
Air Brake: Westinghouse Model: 26L
Compressor: Gardner-Denver Model: WBO
Quantity Built: 14 Dates: 12/1967 to 12/1968
- -
Exterior Dimensions FP45
Total Length 72'-04"
Wheel Diameter 40"
Truck Wheel Base 13'-07"
Height to Top Engine Hood 15'-02"
Height to Top Cab 15'-07.5"
Cab Width 10'-03"
Engine Hood Width 10'-04"
Center Bolster 45'-00"
Center Front Truck to Front Pilot 3'-09"
Center Rear Truck to Rear Pilot 3'-09"
Distance between Truck Centers 58'-07"
Minimum Turning Radious 57 degrees
- -
Fuel Oil: 3200 Lubricating Oil: 243
Engine Cooling Water: 260 Sand Capacity: 56 cu. ft.
Options: Boiler Vapor AR4125
-
