EMD DDM-45 |
 |
| Data Sheet Information Compiled by: JEAN-DENIS BACHAND |
| New: October 1, 2007 |

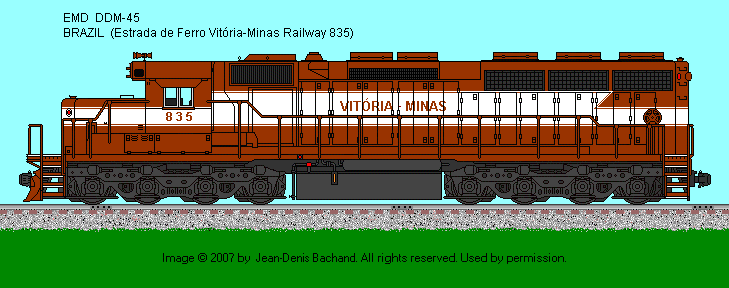

Artwork by: Jean-Denis Bachand |
| - |
| Engine Builder: EMD |
Engine: 645E3 20-cylinder |
| Bore & Stroke |
8.5" X 10" |
| RPM (Maximum / Minimum) |
900 / 315 |
| Main Generator: GM - AR10 |
Horsepower: 3000 |
| Gear Ratio: 62:15 |
Speed: 65 mph |
| Trucks: HTC 8-Wheel |
Configuration: D-D |
| Traction Motor Blowers: Electrical Drive (4) |
Model: GM |
| Weight: 357,000 lbs |
Traction Motors: GM - D77 (Six) |
| Tractive Effort (starting) 92,000 lbs @25% |
Tractive Effort (continuous): 82,000 lbs @ 11 mph |
| Multiple Unit Capability: Yes |
Dynamic Braking: Yes |
| Auxilary Generator: GM Delco A8102 |
Alternator: GMD14 |
| Air Brake: Westinghouse |
Model: 26L |
| Compressor: Gardner-Denver |
Model: WBO |
| Quantity Built: 83
|
Date: 1970 |
| - |
- |
| Exterior Dimensions
| DDM-45 |
| Total Length |
74'-09.3" |
| Wheel Diameter |
40" |
| Truck Wheel Base |
17'-01.5" |
| Height to Top Engine Hood |
14'-08.5" |
| Height to Top Cab |
15'-07.5" |
| Cab Width |
10'-03" |
| Top of Walkway |
8'-09.5" |
| Walkway Width |
3'-08.5" |
| Engine Hood Width |
10'-00" |
| Center Bolster |
36'-04" |
| Center Front Truck to Front Pilot |
0'-09" |
| Center Rear Truck to Rear Pilot |
0'-09" |
| Distance between Truck Centers |
53'-05.5" |
| Minimum Turning Radious |
23 degrees |
| -
| - |
| Fuel Oil: 1700
| Lubricating Oil: 243 |
| Engine Cooling Water: 260
| Sand Capacity: 18 cu. ft. |
| Options: |
| - |
Reference Sources:
- Diesel Locomtoives, Vol.2, by Bob Hayden
- Illustrated Treasury of GM Locomotives, by James W. Kerr
- Diesel Locomotives, The First 50 Years by Louis A. Marre
- "Early Diesel and Electric Locomotives," Rail Heritage Publications
- Diesel & Electric Locomotive Specificiations, 1981 by F.K. Hudson
- TRAIN Recognition Guide by Howard Johnston & Ken Harris, Jane's
|
