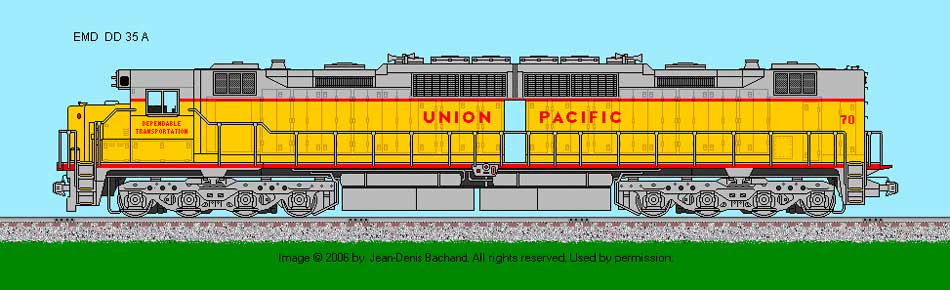

EMD DD35A and (Cabless DD35)

Somebody's Large Digital Image Here
Data Sheet Information Compiled by: JEAN-DENIS BACHAND
New: 26 June 2006  Artwork by: Jean-Denis Bachand
-
Engine Builder: EMD Engine: Two 567D3A 16 cylinder
Bore & Stroke 8.5" X 10"
RPM (Maximum / Minimum) 800 / 275
Main Generator: Two GM - D32 Horsepower: 5000
Gear Ratio: 59:18 Speed: 90 mph
Trucks: 8-Wheel Configuration: D-D
Traction Motor Blowers: Belt Drive (4) Model: GM
Weight: 519,353 lbs (and 521,980 for cabless unit Traction Motors: Eight GM - D67
Tractive Effort (starting) 113,940 lbs @25% Tractive Effort (continuous): 103,000 lbs @ 12 mph
Multiple Unit Capability: Yes Dynamic Braking: Yes
Auxilary Generator: GM Alternator: Delco A8102
Air Brake: Westinghouse Model: 24L
Compressor: Gardner-Denver Model: WBO
Quantity Built: 30 Dates: 11/63 to 9/64 (and 4/65 to 5/65 for Cabless units)
- -
Exterior Dimensions DD35A
Total Length 88'-02" (and 87'-11 for cabless units)
Wheel Diameter 40"
Truck Wheel Base 17'-01"
Height to Top Engine Hood 15'-09.5"
Height to Top Cab 17'-02" (15'-09.5" for cabless unit)
Cab Width 10'-03"
Top of Walkway 9'-04.5"
Walkway Width 4'-03.5"
Engine Hood Width 10'-00"
Center Bolster 55'-00"
Center Front Truck to Front Pilot 2'-04.5"
Center Rear Truck to Rear Pilot 4'10"
Distance between Truck Centers 72'-01.5"
Minimum Turning Radious 57 degrees
- -
Fuel Oil: 5200 Lubricating Oil: 486
Engine Cooling Water: 550 Sand Capacity: 40 cu. ft.
Options: -
-

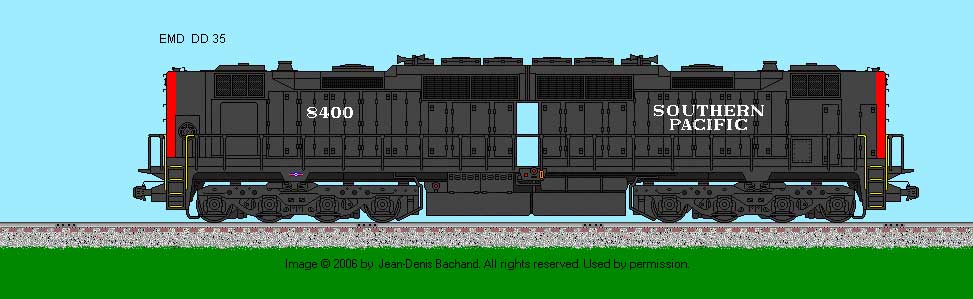

Somebody's Large Digital Image Here
