BLW RF-16

Somebody's Large Digital Image Here
Data Sheet Information Compiled by: JEAN-DENIS BACHAND

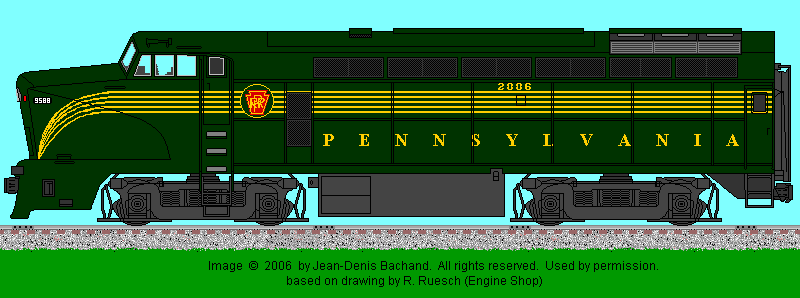

New: 27 February 2006  Drawing by: Jean-Denis Bachand
-
Engine Builder: BLW Engine: 4-cycle Model 608A SC
Bore & Stroke 12.5" X 15.5"
RPM (Maximum) 625
Main Generator: Westinghouse - WE471 Horsepower: 1600
Gear Ratio: 68:15 Speed: 65 mph
Trucks: 4-Wheel Configuration: B-B
Traction Motor Blowers: Westinghouse (1) Model: ?
Weight: 266,000 lbs (and 257,000) Traction Motors: Westinghouse - WE370 (4)
Tractive Effort (starting) 59,000 lbs @ 25% Tractive Effort (continuous): 48,600 lbs @ 9.9 mph
Multiple Unit Capability: No Dynamic Braking: Yes
Auxilary Generator: Westinghouse Alternator: --
Air Brake: Westinghouse Model: 24RL
Compressor: Westinghouse Model: 3C2C
Quantity Built: 51 Dates: 5/1953 to 10/1954
- -
Exterior Dimensions RF-16A (and RF-16B)
Total Length 55'-06" (and 53'-02")
Wheel Diameter 42"
Truck Wheel Base 9'-10"
Height to Top Engine Hood 15'-10"
Height to Top Cab Hood 14'-10"
Cab Width 10'-06"
Top of Walkway N/A
Walkway Width N/A
Engine Hood Width 9'-10"
Center Bolster 29'-06"
Center Front Truck to Front Pilot 5'-03.5" (and 4'-03.5")
Center Rear Tucrk to Rear Pilot 4'-03.5"
Distance between Truck Centers 38'-10"
Minimum Turning Radious 30 degrees
- -
Fuel Oil: 900 or 1200 Lubricating Oil: 190
Engine Cooling Water: 250 (and 325) Sand Capacity: 20 cu. ft.
Options:
Vapor Clarkson Steam Boiler (2500 lbs./hour)
- -
