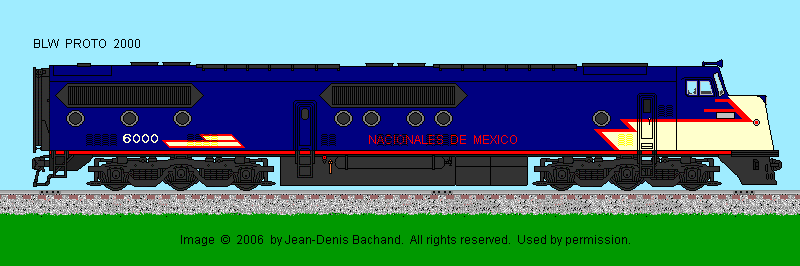

BLW DR 64-2000 |
||
|---|---|---|
| ||
| Data Sheet Information Compiled by: JEAN-DENIS BACHAND | ||
| New: 8 March 2006 | Drawing by: Jean-Denis Bachand | |
| - | ||
| Engine Builder: BLW | Engine: 4-cycle Model VO 6c SC (two) | |
| Bore & Stroke | 12.5" X 15.5" | |
| RPM (Maximum) | 625 | |
| Main Generator: Westinghouse - WE480A (2) | Horsepower: 2000 | |
| Gear Ratio: 63:15 (57:22) | Speed: 65 mph (90 mph) | |
| Trucks: 6-Wheel | Configuration: A-1-A | |
| Traction Motor Blowers: Westinghouse (2) | Model: ? | |
| Weight: 381,000 lbs | Traction Motors: Westinghouse - WE370D (4) | |
| Tractive Effort (starting) 76,200 lbs @ 30% | Tractive Effort (continuous): 28,500 lbs @ 21.5 mph | |
| Multiple Unit Capability: Yes | Dynamic Braking: No | |
| Auxilary Generator: Westinghouse | Alternator: -- | |
| Air Brake: Westinghouse | Model: 24RL | |
| Compressor: Westinghouse | Model: 3C2C | |
| Quantity Built: 3 | Dates: 12/1944 to 8/1946 | |
| - | - | |
| Exterior Dimensions | DR 64-2000 | |
| Total Length | 80'-00" | |
| Wheel Diameter | 40" | |
| Truck Wheel Base | 15'-06" | |
| Height to Top Engine Hood | 15'-00" | |
| Height to Top Cab Hood | 15'-00" | |
| Cab Width | 10'-06" | |
| Top of Walkway | -- | |
| Walkway Width | -- | |
| Engine Hood Width | 9'-10" | |
| Center Bolster | 56'-03.5" | |
| Center Front Truck to Front Pilot | 3'-05.5" | |
| Center Rear Tucrk to Rear Pilot | 3'-05.5" | |
| Distance between Truck Centers | 42'-01" | |
| Minimum Turning Radious | 30 degrees | |
| - | - | |
| Fuel Oil: 1200 | Lubricating Oil: 350 | |
| Engine Cooling Water: 450 | Sand Capacity: 40 cu. ft. | |
| Options: Steam Generator: Vapor Clarkson 2-DK4530/300 lbs per hour |
||
