Alco HH600PRODUCTION ROSTER | ||||

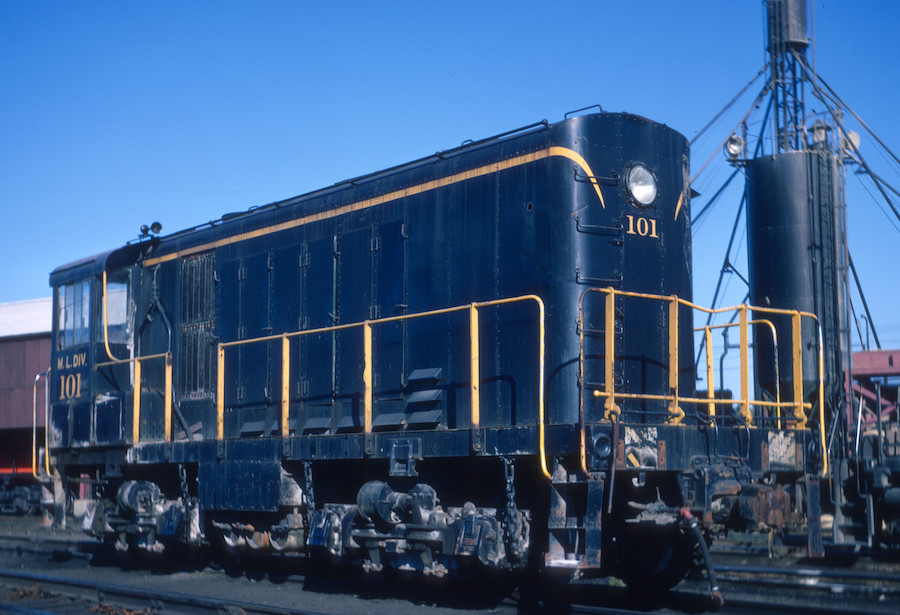

Revised: 11 July 2023 | Art Peterson photo at Albion, PA on 17 August 1971 | |||
New: 3 December 2004 | ||||
Original owner | Road Numbers | Qty. | Bldr Numbers | Bldr Dates |
Alco (Demo) | 1 | 1 | 68682 | 2/35 |
600(1st), 601 | 2 | 68539, 68607 | 7/31, 7/32 | |
600(2nd) | 1 | 68793 | 4/37 | |
602, 603 | 2 | 68608, 68609 | 5/34, 11/33 | |
Atchison Topeka & Santa Fe | 2301, 2302 | 2 | 68803, 68804 | 7, 8/37 |
Atlas Portland Cement | 4 | 1 | 68734 | 12/36 |
Belt Ry of Chicago | 302, 303 | 2 | 68681, 68700 | 5/34, 9/35 |
Boston & Albany | 680-682 | 3 | 69133-69135 | 3-4/39 |
683, 684 | 2 | 69151, 69152 | 5/39 | |
Boston & Maine | 1101 | 1 | 69082 | 8/38 |
Central RR of New Jersey | 1020-1023 | 4 | 69072-69075 | 12/38 |
Chicago & Eastern Illinois | 102 | 1 | 69045 | 1/38 |
Chicago & Illinois Western | 1 | 1 | 68701 | 11/35 |
Chicago & Western Indiana | 1 | 1 | 68643 | 4/34 |
Delaware Lacakwanna & Western | 402-408 | 7 | 68636-68642 | 11/33-1/34 |
Elgin Joliet & Eastern | 209 | 1 | 68807 | 9/37 |
Green Bay & Western | 101 | 1 | 69085 | 10/38 |
Hoboken Manufacturers | 601 | 1 | 69086 | 10/38 |
Illinois Central | 9006-9013 | 8 | 68686-68693 | 6/35 |
Massena Terminal | 7 | 1 | 68733 | 12/36 |
Michigan Limestone & Chemical | 101, 102 | 2 | 68949, 68950 | 8/37 |
New Haven | 0911 | 1 | 69046 | 4/37 |
0912-0919 | 8 | 69048-69055 | 4/37 | |
0920 | 1 | 69070 | 5/38 | |
New York Central | 614-619 | 6 | 69127-69132 | 12/38-3/39 |
Patapsco & Back Rivers | 54 | 1 | 68794 | 4/37 |
55, 56 | 2 | 68805, 68806 | 8/37 | |
57-60 | 4 | 69941-69944 | 10-11/37 | |
Peoria & Pekin Union | 100 | 1 | 68728 | 4/36 |
Portland Terminal | 1001-1003 | 3 | 68730-68732 | 7-8/36 |
1004 | 1 | 69071 | 6/38 | |
South Buffalo | 54 | 1 | 68799 | 8/37 |
55, 56 | 2 | 68797, 68798 | 6, 7/37 | |
57, 58 | 2 | 68796, 68800 | 6, 8/37 | |
59 | 1 | 69047 | 10/37 | |
Steeton & Highspire | 31 | 1 | 68795 | 4/37 |
Technical Data |
|
---|---|

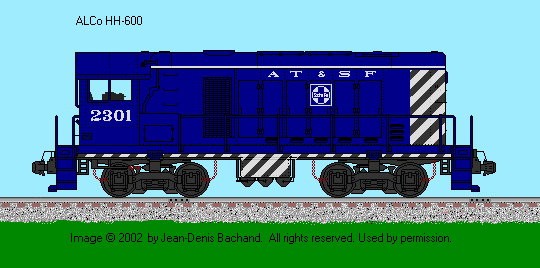

Data Sheet Information Compiled by: JEAN-DENIS BACHAND | |
Engine Builder: Alco | Engine: 4-cycle Model 531 6L |
Bore & Stroke | 12.5" X 13.0" |
RPM (Maximum / Minimum) | 700 / 300 |
Main Generator: GE - GT 526 / 551A1 | Horsepower: 600 |
Gear Ratio: 68:16 | Speed: 40 mph |
Trucks: Blunt 4-Wheel | Configuration: B-B |
Traction Motor Blowers: Electrical Driven (2) | Model: ? |
Weight: 206,120 lbs | Traction Motors: GE 287D/E (four) |
Tractive Effort (starting) 59,700 @ 25% | Tractive Effort (continuous): 28,000 lbs @ 4.8 mph |
Multiple Unit Capability: No | Dynamic Braking: - |
Auxilary Generator: -- | Alternator: -- |
Air Brake: Westinghouse | Model: 14EL |
Compressor: GE | Model: CP26 |
Quantity Built: -- | Dates: -- |
- | - |
Exterior Dimensions | HH-600 |
Total Length | 43'-05" |
Pilot to Pilot | 39'-05" |
Wheel Diameter | 40" |
Truck Wheel Base | 8'-00" |
Height to Top Engine Hood | 14'-05 3/4" |
Height to Top Cab Hood | 14'-05 3/4" |
Cab Width | 10'-00" |
Top Walkway Width | 9'-07 1/2" |
Walkway Width | 5'-00" |
Engine Hood Width | 9'-10" |
Center Bolster | 20'-02" |
Center Front Truck to Front Pilot | 2'-06" |
Center Rear Tucrk to Rear Pilot | 1'-09" |
Distance between Truck Centers | 29'-08" |
Minimum Turning Radius | 39 degrees |
- | - |
Fuel Oil: 635 | Lubricating Oil: 80 |
Engine Cooling Water: 50 | Sand Capacity: 27 cu. ft. |
Options: - | |
- | - |
